6" x 2" Double Flanged Cast Iron Wheel Rigid Caster - 500 Lbs Capacity

$187.19

Part # 146DFCI620R

Availablity: Usually ships in 24-48 hours
+

6" x 2" Double Flanged Cast Iron Wheel Rigid Caster - Part # 146DFCI620R

Double-flanged wheels are designed with two flanges, one on each side of the wheel, which helps guide the cart along tracks while preventing it from derailing.

The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel and forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 500 Link to Matching Swivel Caster: Contact Us

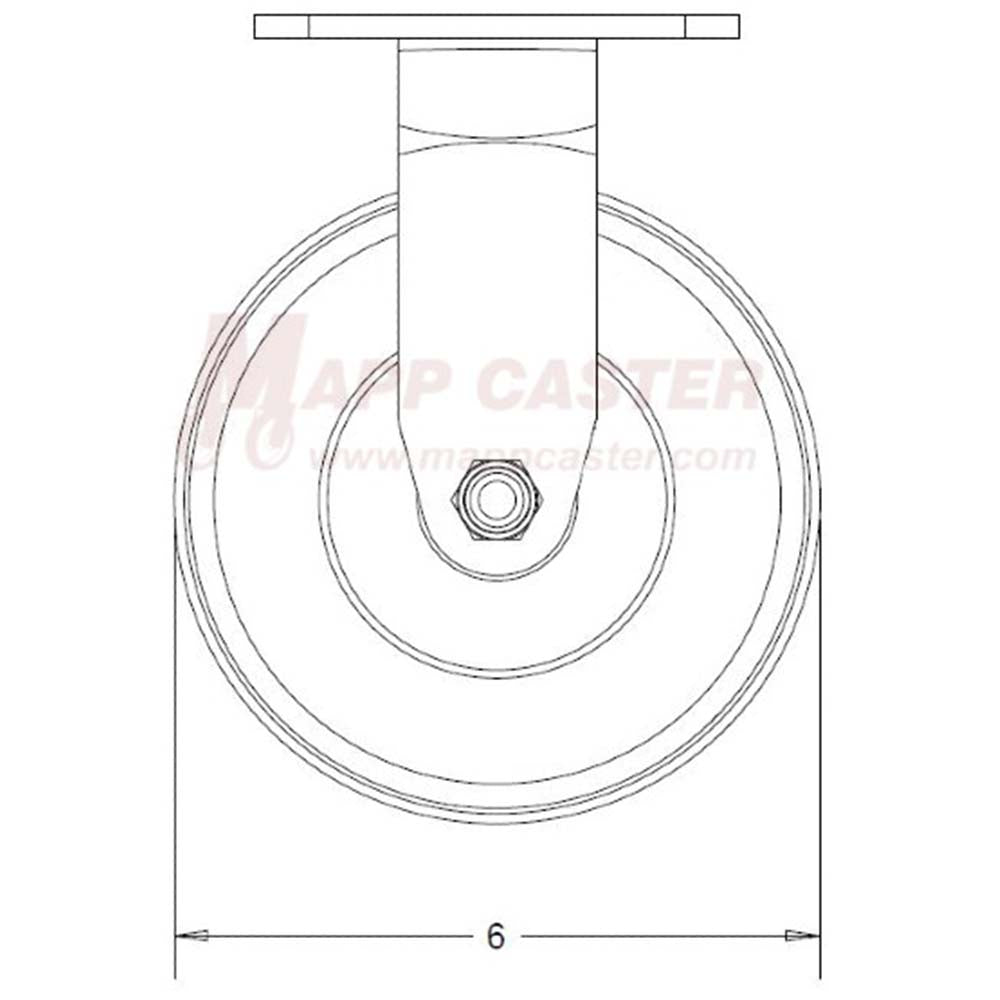

Outer Wheel Diameter: 6"

Inner Wheel Diameter: 5"

Tread Width: 2"

Tread Width without Flanges: 3/4"

Wheels Recess Area Depth: 1/2"

 Wheel Durometer: Brinell 145
Wheel Type: Double Flanged Cast Iron
 Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Roller Bearing Swivel Radius: N/A

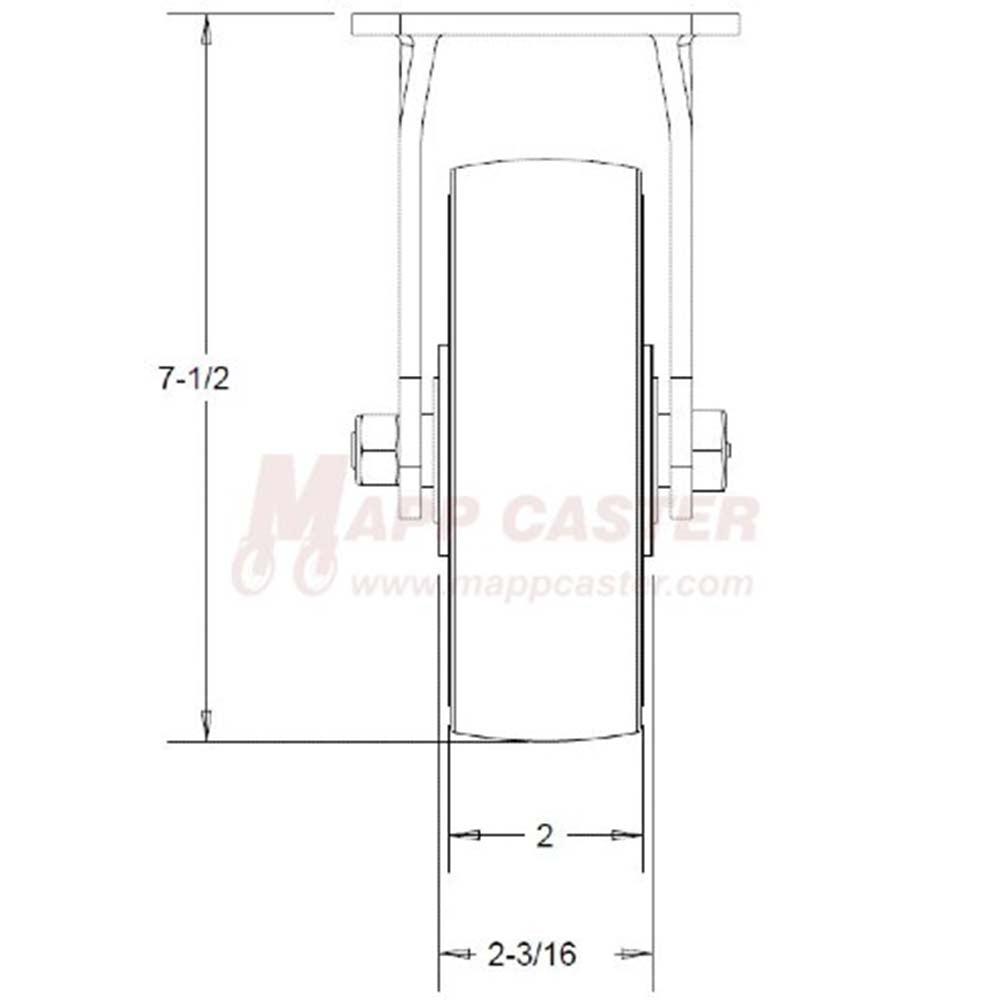

Overall Height: 7-1/2" Swivel Construction: N/A
Temp Range: -40°F to 180°F  Mounting Plate: 4" x 4-1/2"
Wheel Color: Silver Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Mounting Bolt Size: 3/8" or Smaller Link to Replacement Wheel: PFD051011201
Weight: 8.598 Lbs

PRODUCT DETAILS

6" x 2" Double Flanged Cast Iron Wheel Rigid Caster - Part # 146DFCI620R

Double-flanged wheels are designed with two flanges, one on each side of the wheel, which helps guide the cart along tracks while preventing it from derailing.

The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel and forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 500 Link to Matching Swivel Caster: Contact Us

Outer Wheel Diameter: 6"

Inner Wheel Diameter: 5"

Tread Width: 2"

Tread Width without Flanges: 3/4"

Wheels Recess Area Depth: 1/2"

 Wheel Durometer: Brinell 145
Wheel Type: Double Flanged Cast Iron
 Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Roller Bearing Swivel Radius: N/A
Overall Height: 7-1/2" Swivel Construction: N/A
Temp Range: -40°F to 180°F  Mounting Plate: 4" x 4-1/2"
Wheel Color: Silver Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Mounting Bolt Size: 3/8" or Smaller Link to Replacement Wheel: PFD051011201
Weight: 8.598 Lbs
