3" x 1-1/4" White Polyolefin Wheel Stainless Steel Sealed Swivel Caster with Face Contact Brake - 250 Lbs Capacity

Part # Q513001WPOSEALFCB

Availablity: Usually ships in 5-7 Business Days
+


3" x 1-1/4" White Polyolefin Wheel Stainless Steel Sealed Swivel Caster with Face Contact Brake - Part# Q513001WPOSEALFCB

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant, and abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities and are also non-marking. They also are washable, impervious to water, and highly resistant to solvents, oils, grease, most chemicals, and cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features and economical price point that plastic wheel casters are very popular.

We recommend these wheels for many applications, however, if you need a smooth cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

The stainless steel on this caster significant extends the life of the caster, especially in wet environments. Wet environments are harsh on regular casters & causes them to ultimately rust & seize up. This caster is wash down ready whenever it's time to close up. The swivel seal on this caster protects the swivel section from liquids, dirt & debris. This helps extend the life of the caster by protecting the ball bearings in the swivel section where other casters have them exposed.

Specifications:

Load Capacity (lbs.): 250 Link to Matching Rigid Caster: Q5130R01WPOSEAL
Wheel Diameter: 3" Caster Rig Material Type: S304 Stainless Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Stainless Steel
Wheel Type: Plastic (Polyolefin) Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: Plain Bore Swivel Radius: 3"
Overall Height: 4-1/8" Swivel Construction: Double Ball Raceway

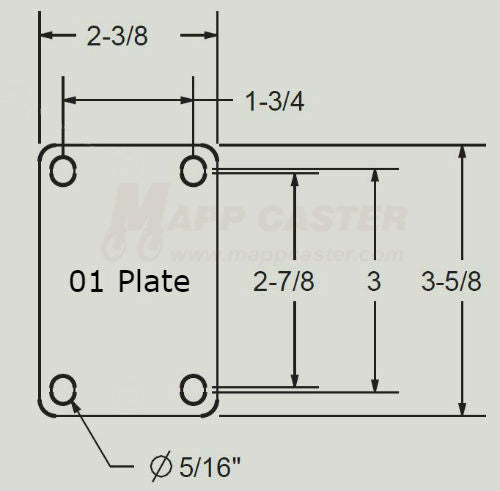

Temp Range: -20 to 180F Mounting Plate:  2-3/8" x 3-5/8"
Wheel Durometer: 70 Shore D (+/-5) Bolt Hole Pattern:  1-3/4" x 2-7/8" to 3"
Wheel Color: White  Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel:  Weight: 1.63 Lbs





Part Number for Optional (3-1/8" x 4-1/8") 03 Plate Caster: Q513003WPOSEALFCB      (Call To Inquire)

PRODUCT DETAILS

3" x 1-1/4" White Polyolefin Wheel Stainless Steel Sealed Swivel Caster with Face Contact Brake - Part# Q513001WPOSEALFCB

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant, and abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities and are also non-marking. They also are washable, impervious to water, and highly resistant to solvents, oils, grease, most chemicals, and cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features and economical price point that plastic wheel casters are very popular.

We recommend these wheels for many applications, however, if you need a smooth cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

The stainless steel on this caster significant extends the life of the caster, especially in wet environments. Wet environments are harsh on regular casters & causes them to ultimately rust & seize up. This caster is wash down ready whenever it's time to close up. The swivel seal on this caster protects the swivel section from liquids, dirt & debris. This helps extend the life of the caster by protecting the ball bearings in the swivel section where other casters have them exposed.

Specifications:

Load Capacity (lbs.): 250 Link to Matching Rigid Caster: Q5130R01WPOSEAL
Wheel Diameter: 3" Caster Rig Material Type: S304 Stainless Steel
Tread Width: 1-1/4" Caster Rig Color/Finish: Stainless Steel
Wheel Type: Plastic (Polyolefin) Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: Plain Bore Swivel Radius: 3"
Overall Height: 4-1/8" Swivel Construction: Double Ball Raceway
Temp Range: -20 to 180F Mounting Plate:  2-3/8" x 3-5/8"
Wheel Durometer: 70 Shore D (+/-5) Bolt Hole Pattern:  1-3/4" x 2-7/8" to 3"
Wheel Color: White  Mounting Bolt Size: 5/16" or Smaller
Link to Replacement Wheel:  Weight: 1.63 Lbs





Part Number for Optional (3-1/8" x 4-1/8") 03 Plate Caster: Q513003WPOSEALFCB      (Call To Inquire)
