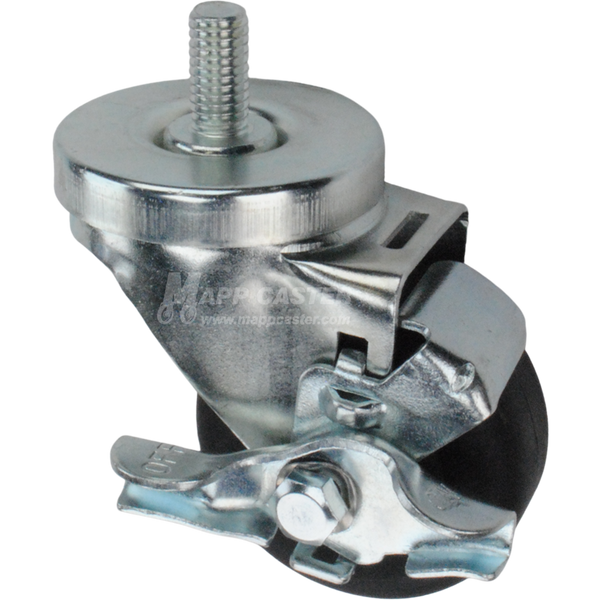

3" x 1-3/8" High Temp Nylon Wheel Swivel Brake Caster, 1/2"-13 x 1" Threaded Stem, 490˚F (550˚F Intermittent) - 350 lbs Capacity

$19.74

Part # Q503021HEATTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-3/8" High Temp Nylon Wheel Swivel Brake Caster, 1/2"-13 x 1" Threaded Stem - Part # Q503021HEATTLB

High Temperature HeatEater wheels have a temperature range up to 490˚F continuous and 550˚F intermittent. Made of a glass filled nylon mixture, these wheels can be used in both wet and dry high temperature applications. The hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. All these features make this one of our favorite high temp wheels!

They offer longer wear than high temp phenolic wheels, are kinder on floors, and quieter rolling.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 350 Lbs.	Stem Size: 1/2"
Wheel Diameter:3"	Stem Thread Pitch:13
Tread Width: 1-3/8"	Stem Length:1"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:None	Caster Rig Material Type:Q235 Steel
Wheel Type:Glass Filled Nylon	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore D 85 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -70˚F to 490˚F (550˚F Intermittent)	Weight: 1.622 Lbs
Link to Replacement Wheel: R3171C	Link to Matching Swivel Caster: Q503021HEAT

Capacity: 350 lbs.

Wheel Diameter:3"

Tread Width:1-3/8"

Stem Size:1/2"

Stem Thread Pitch: 13

Stem Length: 1"

Tread Shape:Slightly Crowned

Bearing Type: None

Wheel Type: Glass Filled Nylon

Wheel Durometer:Shore D 85 (+/-5)

Overall Height:4"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-70˚F to 490˚F (550˚F Intermittent)

Weight:1.622 Lbs

Link to Replacement Wheel:R3171C

Link to Matching Swivel Caster:Q503021HEAT
