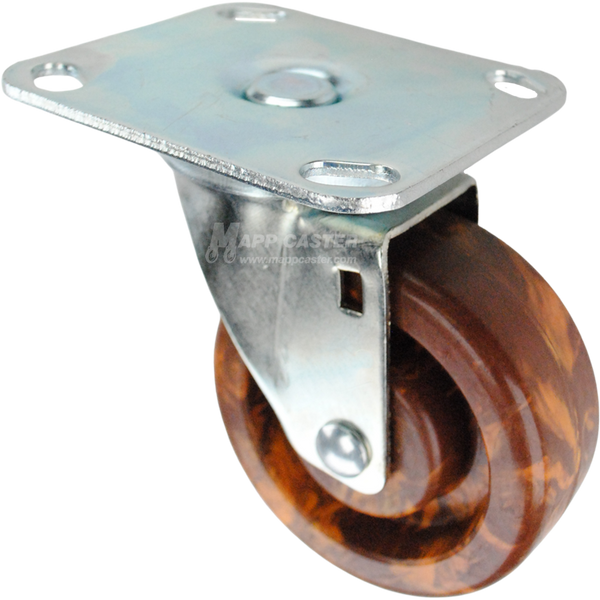

4" x 1-1/2" High Temp Epoxy Wheel Swivel Caster, 4" x 4-1/2" Plate - 350 lbs Capacity

$27.90

Part # Q524002OV

PRODUCT DETAILS

4" x 1-1/2" High Temp Epoxy Wheel Swivel Caster, 4" x 4-1/2" Top Plate - Part # Q524002OV

High temperature epoxy caster wheels are designed for wet & dry high heat environments making the an excellent choice for ovens, bakeries, powder coating operations & other high heat industrial environments.

Made from glass fiber & reinforced epoxy resin, the hard tread rolls easily while providing better impact resistance & excellent resistance to water, oil, grease, most acids, alkalis, chemicals & cleaning solutions. These wheels are rated for temperatures up to 480°F are well suited for applications that require regular wash downs or steam cleaning.

* Offers a slightly quieter rolling experience compared to high temp nylon, the green high temp epoxy & steel wheels. If temperatures needed exceed 480°F, view our other high temp & steel wheels.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 350 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:4"	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 1-1/2"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Flat	Overall Height:5-1/8"
Bearing Type:Bushing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:High Temp Epoxy	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 90 (+/-5)	Swivel Radius: 3-13/32"
Wheel Color: Brown	Swivel Construction: Double Ball Raceway
Temp Range: -40˚F to 480˚F	Weight: 2.562 Lbs
Link to Replacement Wheel: LOV40HQ83	Link to Matching Rigid Caster: Q5240R02OV
Link to Matching Swivel Brake Caster: Q524002OVTLB

Capacity: 350 lbs.

Wheel Diameter:4"

Tread Width:1-1/2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Flat

Bearing Type: Bushing

Wheel Type: High Temp Epoxy

Wheel Durometer:Shore D 90 (+/-5)

Overall Height:5-1/8"

Swivel Radius:3-13/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Roller Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Brown

Temp Range:-40˚F to 480˚F

Weight:2.562 Lbs

Link to Replacement Wheel:LOV40HQ83

Link to Matching Rigid Caster:Q5240R02OV

Link to Matching Swivel Brake Caster:Q524002OVTLB
