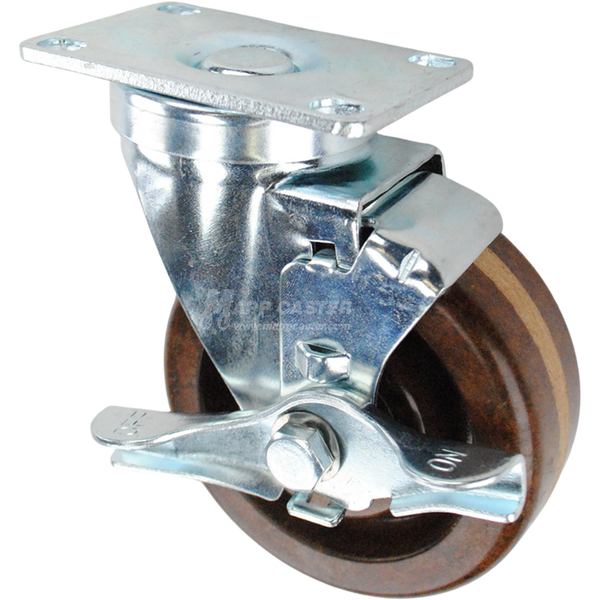

4" x 1-1/2" High Temp Phenolic Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Plate - 350 lbs Capacity

$38.13

Part # Q524001HTPHNTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

4" x 1-1/2" High Temp Phenolic Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q524001HTPHNTLB

High temperature phenolic caster wheels are designed for dry high heat environments making the an excellent choice for ovens, powder coating operations & other high heat industrial environments.

Made from phenolic resin-impregnated material that is molded under high pressure, the hard tread rolls easily while providing impact resistance. This Wheel has excellent resistance to oil, grease, most acids, chemicals & cleaning solutions. Designed to handle temperatures up to 475°F continuously & 525°F intermittently, with intermittent exposure defined as 30 minutes in heat followed by a 30 minute cooling cycle.

We often recommend high temperature phenolic wheels over high temperature nylon when applications involve longer-term heat exposure & heavy static loads (closer to the maximum sum of all caster capacity, as nylon wheels can soften ever so slightly when subjected to sustained high temperatures. We do not recommend this wheel for frequent wash downs or wet conditions. For those applications, we recommend high temp nylon or high temp epoxy.

* Offers a quieter rolling experience compared to steel wheels. If temperature needed exceed 525°F, consider our high temp epoxy or steel wheels.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 350 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:4"	Bolt Hole Pattern:1-3/4" x 2-7/8" slotted to 1-3/4" x 3"
Tread Width: 1-1/2"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Flat	Overall Height:5-1/8"
Bearing Type:Bushing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:High Temp Phenolic	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 95 (+/-5)	Swivel Radius: 3-13/32"
Wheel Color: Brown	Swivel Construction: Double Ball Raceway
Temp Range: -40˚F to 475˚F (525˚F Intermittent)	Weight: 2.386 Lbs
Link to Replacement Wheel: LHT40HQ90	Link to Matching Rigid Caster: Q5240R01HTPHN
Link to Matching Swivel Caster: Q524001HTPHN

Capacity: 350 lbs.

Wheel Diameter:4"

Tread Width:1-1/2"

Mounting Plate:2-3/8 x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" slotted to 1-3/4" x 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Flat

Bearing Type: Bushing

Wheel Type: High Temp Phenolic

Wheel Durometer:Shore D 95 (+/-5)

Overall Height:5-1/8"

Swivel Radius:3-13/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Roller Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Brown

Temp Range:-40˚F to 475˚F (525˚F Intermittent)

Weight:2.386 Lbs

Link to Replacement Wheel:
LHT40HQ90

Link to Matching Rigid Caster:Q5240R01HTPHN

Link to Matching Swivel Caster:Q524001HTPHN
