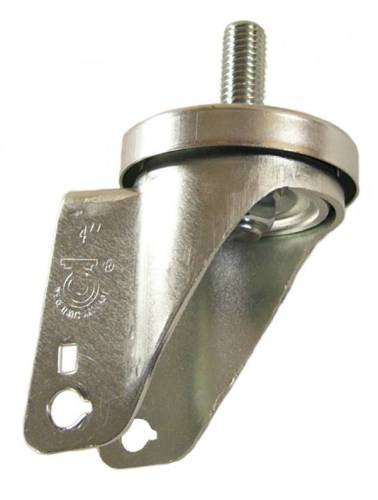

4" x 1-1/4" Swivel Caster Rig with 1/2" Threaded Stem - Part # Q504022YAN

Part # Q504022YAN

Availablity: Usually ships in 24-48 hours
+


4" x 1-1/4" Swivel Caster Rig with 1/2" Threaded Stem - Part # Q504022YAN

The rig is designed for 4" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 4" diameter wheel, the rig produces an overall height of 5".

SPECIFICATIONS

Load Capacity (lbs.): 350 Stem Thread: 1/2" x 13
Designed for Wheel Diameter of: 4" Stem Length: 1-1/2"
Designed for Tread Width of: 1-1/4" Swivel Construction: Double Ball Raceway
Wheel Hub Length: Up to 1-5/8" Swivel Radius: 3-13/32"
Overall Height (with wheel): 5" Caster Rig Material Type: Cold Rolled Steel
Axle Size: 3/8" Caster Rig Color/Finish: Bright Zinc Plated
Leg Thickness: 0.1" Weight (lbs): 1.1
Matching Brake Kit: Q5240TLB



Popular Wheels for this rig: Capacity is the lower of the rig or wheel

LSS414 4" Semi-Steel wheel
QHR4H3 4" Hard Rubber wheel
QMIR4G3 4" Thermoplastic Rubber wheel
QPLY4J3 4" Polyurethane wheel

PRODUCT DETAILS

4" x 1-1/4" Swivel Caster Rig with 1/2" Threaded Stem - Part # Q504022YAN

The rig is designed for 4" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 4" diameter wheel, the rig produces an overall height of 5".

SPECIFICATIONS

Load Capacity (lbs.): 350 Stem Thread: 1/2" x 13
Designed for Wheel Diameter of: 4" Stem Length: 1-1/2"
Designed for Tread Width of: 1-1/4" Swivel Construction: Double Ball Raceway
Wheel Hub Length: Up to 1-5/8" Swivel Radius: 3-13/32"
Overall Height (with wheel): 5" Caster Rig Material Type: Cold Rolled Steel
Axle Size: 3/8" Caster Rig Color/Finish: Bright Zinc Plated
Leg Thickness: 0.1" Weight (lbs): 1.1
Matching Brake Kit: Q5240TLB



Popular Wheels for this rig: Capacity is the lower of the rig or wheel

LSS414 4" Semi-Steel wheel
QHR4H3 4" Hard Rubber wheel
QMIR4G3 4" Thermoplastic Rubber wheel
QPLY4J3 4" Polyurethane wheel
