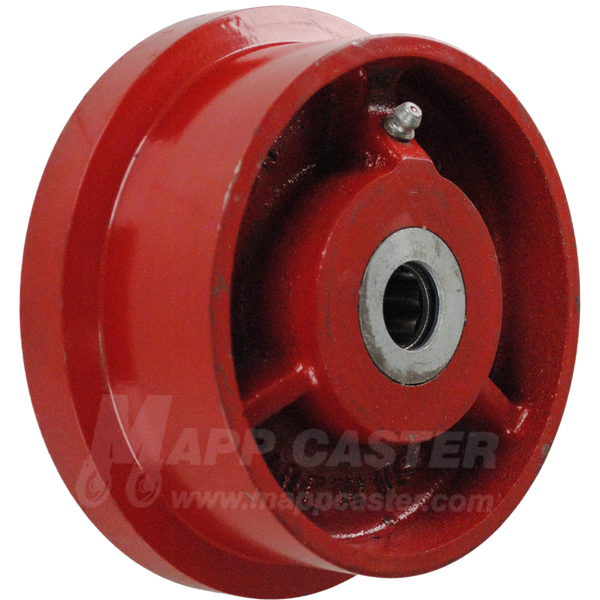

4-15/16" x 1-7/16" Flanged Cast Iron Wheel - 1,500 Lbs Capacity

$86.20

Part # KWFT-51H-3/4

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

4-15/16" x 1-7/16" Flanged Cast Iron Wheel - Part # KWFT-51H-3/4

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options. These wheels come with extra thick treads, hubs & walls. Cast iron steel is very resilient, it is tough on floors & could lead to floor damage.

Recommended Rail Type: ASCE 16

Specifications:

Load Capacity (lbs.): 1,500	Hub Length (Plain Bore): N/A
Inner Wheel Diameter: 4-15/16" Outer Wheel Diameter: 5-11/16"	Hub Length (with Bearings): 2-1/4"
Overall Tread Width: 2-1/8" Roll-able Tread Width: 1-7/16" Flange Width: 11/16"	Wheel Color: Red
Bearing Type: Roller Bearing	Wheel Durometer: Brinell 188
Plain Bore ID: 1-7/16"	Low Temp Range: -45˚F
Bearing ID: 3/4"	High Temp Range: 600˚F
Wheel Type: Ductile Steel	Weight: 7 Lbs
