Home / All / 75mm x 25mm (2.95" x 0.98") Thermoplastic Rubber (TPR) Wheel Swivel Caster - 165 Lbs Capacity

75mm x 25mm (2.95" x 0.98") Thermoplastic Rubber (TPR) Wheel Swivel Caster - 165 Lbs Capacity

$21.16

Part # ELPA-TPA 75K-FK

+

75mm x 25mm (2.95" x 0.98") Thermoplastic Rubber (TPR) Wheel Swivel Caster - Part # ELPA-TPA 75K-FK

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris like metal shavings.

*This is a metric product. Measurements provide in imperial and metric

Specifications:

Load Capacity (lbs.): 165 Link to Matching Rigid Caster: Contact Us
Wheel Diameter: 75mm (2.952")  Caster Rig Material Type: Pressed Steel
Tread Width: 25mm (0.984") Caster Rig Color/Finish: Zinc Plated
Wheel Type: Thermoplastic Rubber (TPR) Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearing Swivel Radius: 2-7/8" (73mm)
Overall Height: 100mm (3.937") Swivel Construction: Ball Bearing
Temp Range: -45°F to 140°F Mounting Plate: 2.36" x 2.36" (60mm x 60mm)

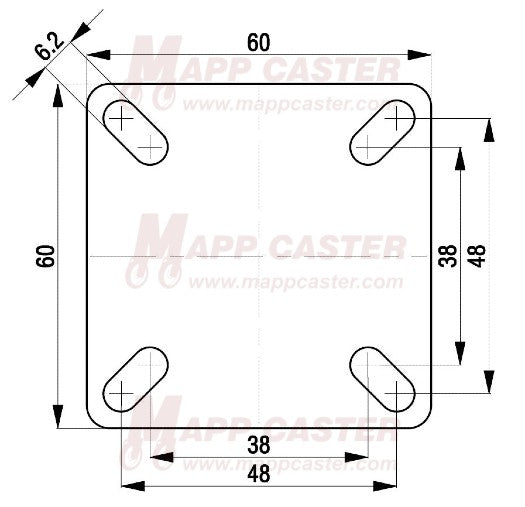

Wheel Durometer: Shore A 85 (+/-5)  Bolt Hole Pattern: 1.5" x 1.5" Slotted to 1.88" x 1.88" (38 x 38mm slotted to 48 x 48mm)
Wheel Color: Grey   Mounting Bolt Size: 6mm or smaller
Link to Replacement Wheel: Contact Us Weight: 0.8 Lbs.

PRODUCT DETAILS

75mm x 25mm (2.95" x 0.98") Thermoplastic Rubber (TPR) Wheel Swivel Caster - Part # ELPA-TPA 75K-FK

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris like metal shavings.

*This is a metric product. Measurements provide in imperial and metric

Specifications:

Load Capacity (lbs.): 165 Link to Matching Rigid Caster: Contact Us
Wheel Diameter: 75mm (2.952")  Caster Rig Material Type: Pressed Steel
Tread Width: 25mm (0.984") Caster Rig Color/Finish: Zinc Plated
Wheel Type: Thermoplastic Rubber (TPR) Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearing Swivel Radius: 2-7/8" (73mm)
Overall Height: 100mm (3.937") Swivel Construction: Ball Bearing
Temp Range: -45°F to 140°F Mounting Plate: 2.36" x 2.36" (60mm x 60mm)
Wheel Durometer: Shore A 85 (+/-5)  Bolt Hole Pattern: 1.5" x 1.5" Slotted to 1.88" x 1.88" (38 x 38mm slotted to 48 x 48mm)
Wheel Color: Grey   Mounting Bolt Size: 6mm or smaller
Link to Replacement Wheel: Contact Us Weight: 0.8 Lbs.
