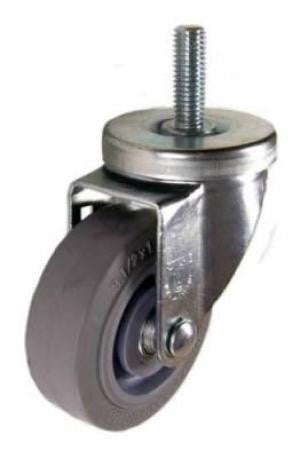

3-1/2" x 1-1/4" Thermoplastic Rubber (TPR) Wheel Swivel Caster with 1/2" Threaded Stem - 200 Lbs Capacity

Part # Q523522MIR

Availablity: Usually ships in 24-48 hours
+


3-1/2" x 1-1/4" THERMOPLASTIC RUBBER WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM - Part #: Q523522MIR

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 200 Link to Replacement Wheel: QMIR35G3
Wheel Diameter: 3-1/2" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Thermoplastic Rubber Swivel Radius: 3-1/8"
Wheel Bearing Type: Ball Swivel Construction/Diameter: Kingpin
Overall Height: 4-5/8" Temp Range: -45 to 180˚F
Stem Size: 1/2" Wheel Hardness: Shore A 65 (+/-5)
Stem Length: 1-1/2" Wheel Color: Grey
Stem Thread Pitch: 13 Weight: 1.45 lbs.

PRODUCT DETAILS

3-1/2" x 1-1/4" THERMOPLASTIC RUBBER WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM - Part #: Q523522MIR

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 200 Link to Replacement Wheel: QMIR35G3
Wheel Diameter: 3-1/2" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Thermoplastic Rubber Swivel Radius: 3-1/8"
Wheel Bearing Type: Ball Swivel Construction/Diameter: Kingpin
Overall Height: 4-5/8" Temp Range: -45 to 180˚F
Stem Size: 1/2" Wheel Hardness: Shore A 65 (+/-5)
Stem Length: 1-1/2" Wheel Color: Grey
Stem Thread Pitch: 13 Weight: 1.45 lbs.
