5" x 2" Polyolefin Swivel Caster with Total Locking Brake - 500 Lbs Capacity

Part # 146PO520SBTL

Availablity: Usually ships in 5-7 Business Days
+


5" x 2" Polyolefin Swivel Caster with Total Locking Brake - Part #: 146PO520SBTL

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant & abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities & are also non-marking. They also are washable, impervious to water, highly resistant to solvents, oils, grease, most chemicals & cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features & economical price point that plastic wheel casters are very popular.

We recommend these wheels for many applications, however, if you need a more smooth, quiet, or cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.



Specifications:

Load Capacity (lbs.): 500 Link to Matching Rigid Brake Caster: 146PO520RB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyolefin Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Plain Bore

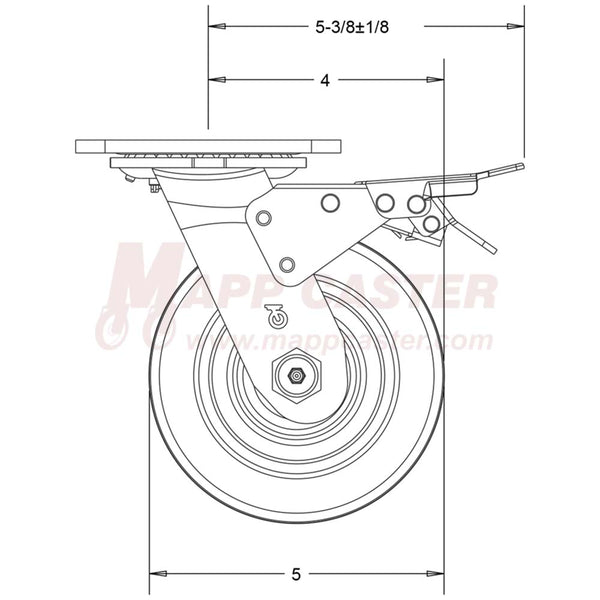

Swivel Radius: 7-7/8"

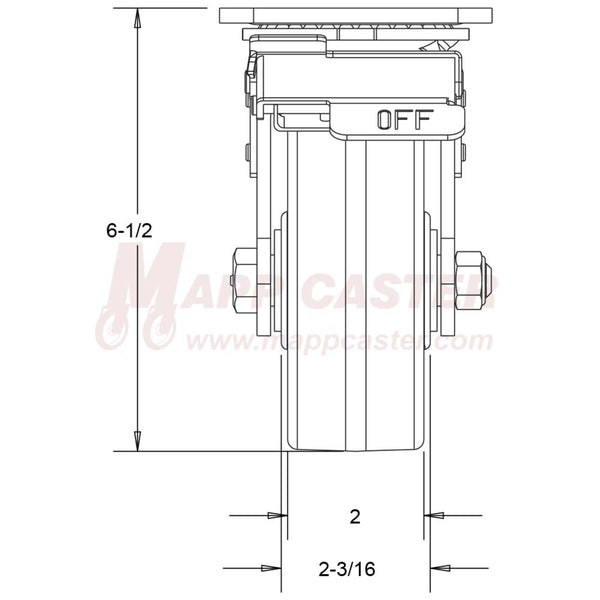

Overall Height: 6-5/8" Swivel Construction: Double Ball Raceway - 5/8" Kingpin

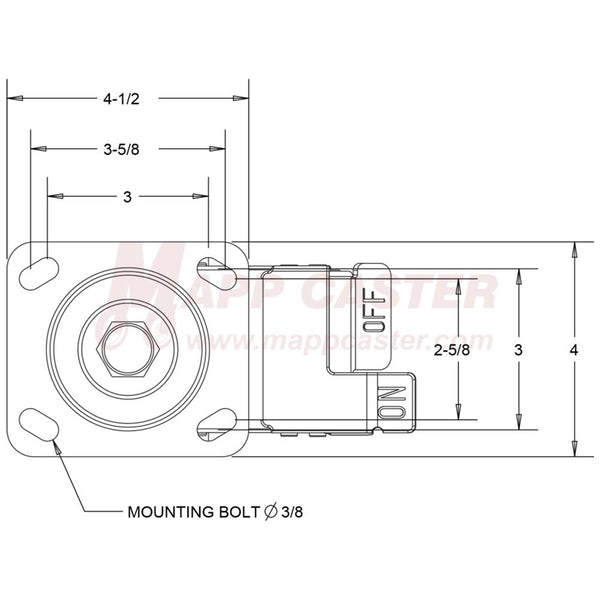

Temp Range:  -20°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 70 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LPO50JB11 Weight : 5.56 lbs.

PRODUCT DETAILS

5" x 2" Polyolefin Swivel Caster with Total Locking Brake - Part #: 146PO520SBTL

Plastic caster wheels are solid injected molded polyolefin which yields a high shock load, impact resistant & abrasion resistant wheel. These wheels are lightweight yet hold high weight capacities & are also non-marking. They also are washable, impervious to water, highly resistant to solvents, oils, grease, most chemicals & cleaning solutions. These wheels do not flat spot over time like softer tread wheels. It is because of these many features & economical price point that plastic wheel casters are very popular.

We recommend these wheels for many applications, however, if you need a more smooth, quiet, or cushioned ride, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.



Specifications:

Load Capacity (lbs.): 500 Link to Matching Rigid Brake Caster: 146PO520RB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyolefin Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Plain Bore
Swivel Radius: 7-7/8"
Overall Height: 6-5/8" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range:  -20°F to 180°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 70 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LPO50JB11 Weight : 5.56 lbs.
