Home / 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" / 5" x 2" Solid Elastomer Ball Bearing Wheel Rigid Caster with 6-1/4" x 4-1/2" Top Plate - 1400 Lbs Capacity

5" x 2" Solid Elastomer Ball Bearing Wheel Rigid Caster with 6-1/4" x 4-1/2" Top Plate - 1400 Lbs Capacity

$46.79

Part # 25ORHUBB

Availablity: Usually ships in 24-48 hours
+

5" x 2" Solid Elastomer Ball Bearing Wheel Rigid Caster with 6-1/4" x 4-1/2" Top Plate - Part #: 25ORHUBB

Solid cast polyurethane elastomer wheels are similar to solid poly wheels but offer the higher capacities. These wheels are 100% washable, steam cleanable, and chemical resistant. These wheels have excellent impact strength, abrasion resistance, and compression resistance. They are easy to start rolling and offer a smooth ride. The polyurethane elastomer tread is mechanically locked to a glass filled nylon core which greatly decreases the chance of tread de-bonding failures. These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.

Also like the solid poly wheels you will pay more upfront for this wheel but you will not have to worry about the tread de-bonding which means less down time and maintenance. This will add up to serious savings over the life of the caster.

Specifications:

Load Capacity (lbs.): 1400 Link to Matching Swivel Caster: 25OSHUBB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Solid Elastomer/Polyurethane Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Ball Bearings Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction: N/A
Temp Range: -50 to 180F Mounting Plate: 4-1/2" x  6-1/4"

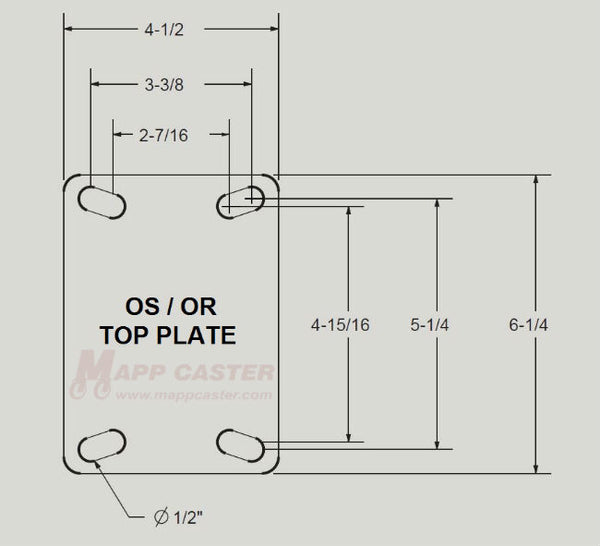

Wheel Durometer:  Shore D 65 (+/-5) Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Wheel Color: Green & Black  Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LHU50JI84 Weight: 5.6 lbs.

PRODUCT DETAILS

5" x 2" Solid Elastomer Ball Bearing Wheel Rigid Caster with 6-1/4" x 4-1/2" Top Plate - Part #: 25ORHUBB

Solid cast polyurethane elastomer wheels are similar to solid poly wheels but offer the higher capacities. These wheels are 100% washable, steam cleanable, and chemical resistant. These wheels have excellent impact strength, abrasion resistance, and compression resistance. They are easy to start rolling and offer a smooth ride. The polyurethane elastomer tread is mechanically locked to a glass filled nylon core which greatly decreases the chance of tread de-bonding failures. These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.

Also like the solid poly wheels you will pay more upfront for this wheel but you will not have to worry about the tread de-bonding which means less down time and maintenance. This will add up to serious savings over the life of the caster.

Specifications:

Load Capacity (lbs.): 1400 Link to Matching Swivel Caster: 25OSHUBB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Solid Elastomer/Polyurethane Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Ball Bearings Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction: N/A
Temp Range: -50 to 180F Mounting Plate: 4-1/2" x  6-1/4"
Wheel Durometer:  Shore D 65 (+/-5) Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Wheel Color: Green & Black  Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LHU50JI84 Weight: 5.6 lbs.
