100mm x 36mm (3.93" x 1.41") Road Case Casters w/ Roller Bearings, Set of 4 (2 Brakes) - 1,320 lbs Capacity

$70.72

Part # GRC-100x35-KIT-2B

Availablity: Usually ships in 3-5 Business Days

PRODUCT DETAILS

100mm x 36mm (3.93" x 1.41") Elastic Rubber Roller Bearing Wheel Swivel & Swivel Brake Casters for Road Cases, 80mm x 105mm Plate - Part # GRC-100x35-KIT-2B

Elastic rubber caster wheels are designed as soft, non-marking wheels with roller bearings for smooth, quiet operation. The elastic rubber tread offers excellent abrasion resistance, improved impact absorption, strong floor protection, reduced noise, and the ability to shed debris, helping extend overall service life. These wheels are ideal for road cases commonly used in the music, theater, and AV industries, where equipment is frequently transported.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

* Comes with 2 swivel and 2 swivel brake casters and 8mm bolts and nuts

Specifications:

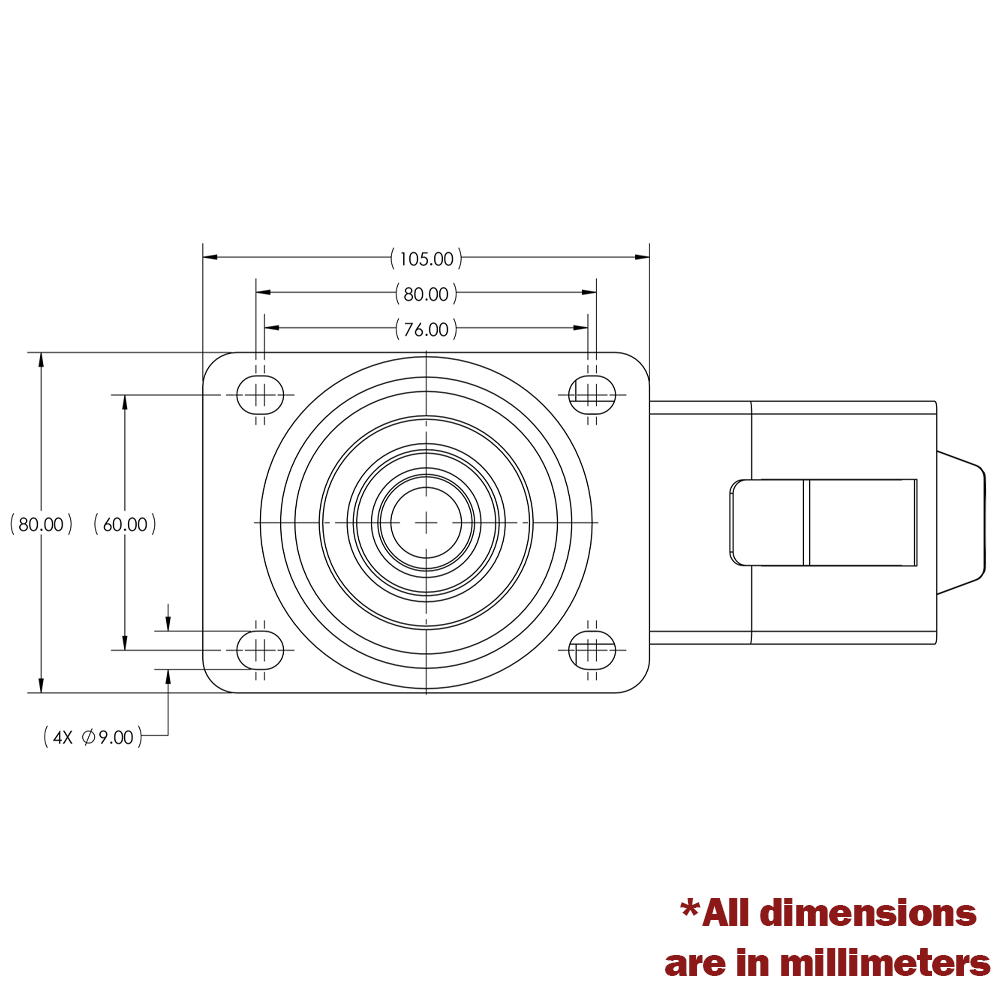

Capacity: 1,320 Lbs. (330 lbs each)	Mounting Plate: 80mm x 105mm
Wheel Diameter:100mm (3.93")	Bolt Hole Pattern:60mm x 76mm slotted to 80mm
Tread Width: 36mm (1.41")	Mounting Bolt Size:8mm or Smaller
Tread Shape:Slightly Crowned	Overall Height:125mm (4.92")
Bearing Type:Roller Bearing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Elastic Rubber	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore A 65 (+/-5)	Swivel Radius: 132mm (~5-3/16")
Wheel Color: Blue	Swivel Construction: Double Ball Raceway (w/ Dust Cap)
Temp Range: -20˚F to 180˚F	Weight: 8.02 Lbs
Link to Matching Kit w/ No Brakes: GRC-100x35-KIT-NB	Link to Matching Kit w/ All Brakes: GRC-100x35-KIT-AB

Capacity: 1,320 Lbs. (330 lbs each)

Wheel Diameter:100mm (3.93")

Tread Width:36mm (1.41")

Mounting Plate:80mm x 105mm

Bolt Hole Pattern: 60mm x 76mm slotted to 80mm

Mounting Bolt Size: 8mm or Smaller

Tread Shape:Slightly Crowned

Bearing Type: Roller Bearing

Wheel Type: Elastic Rubber

Wheel Durometer:Shore A 65 (+/-5)

Overall Height:125mm (4.92")

Swivel Radius:132mm (~5-3/16")

Swivel Construction: Double Ball Raceway (w/ Dust Cap)

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Blue

Temp Range:-20˚F to 180˚F

Weight:8.02 Lbs

Link to Matching Kit w/ No Brakes:GRC-100x35-KIT-NB

Link to Matching Kit w/ All Brakes:GRC-100x35-KIT-AB
