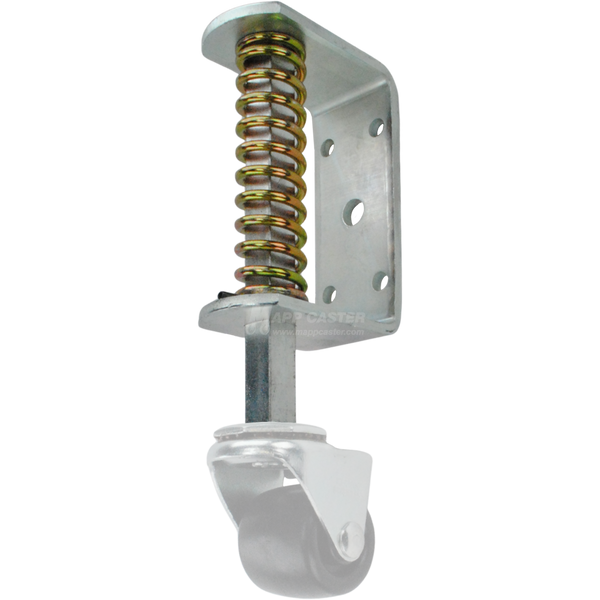

Spring Loaded Gate Caster (Bracket Only) (USA Made) - 200 Lbs Capacity

$95.46

Part # 5582

PRODUCT DETAILS

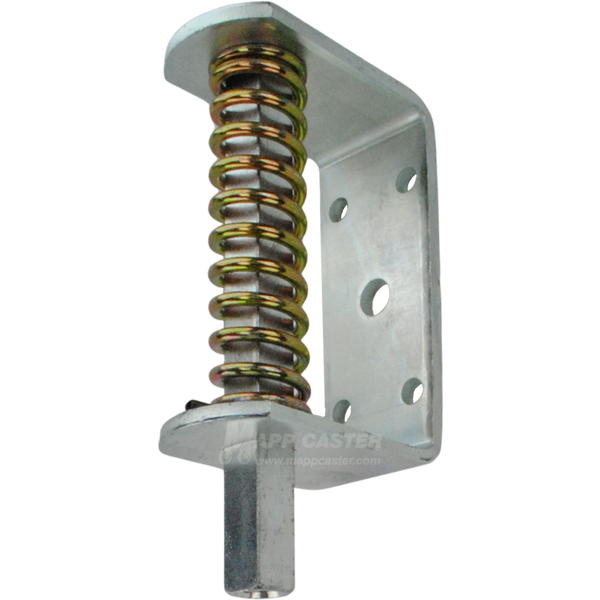

Spring Loaded Gate Caster Bracket (Bracket Only) - Part # 5582

200 lbs spring compression rating
Can be put on gates, doors, or ladders
Total capacity is 210 lbs or the capacity of the caster, whichever is the lesser
BRACKET ONLY - Caster sold separately
Accepts 1/2"-13 x 1" threaded stem
1-3/4" Deflection (Travel)

At 75 lbs spring compressed 5/8"
At 150 lbs spring compressed 1-1/4"
At 210 lbs spring compressed 1-3/4"

Mounting Plate: 2" x 5-1/4"

4 Holes: 1-1/4" x 3"
