Spring Loaded Gate Caster Bracket (USA MADE) with 2" Elastomer Wheel (USA Made) - 300 Lbs Capacity

$176.87

Part # 5882-432LXAE

PRODUCT DETAILS

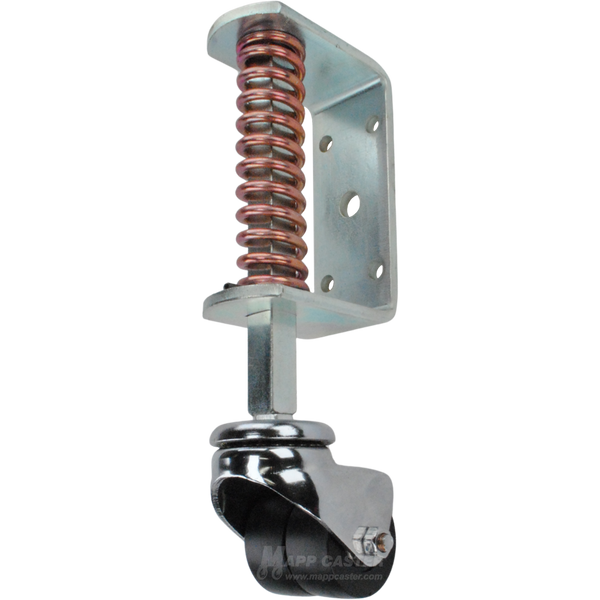

All USA MADE Spring Loaded Gate Caster Bracket with 2 Dual Elastomer Wheel - Part # 5882-432LXAE

Designed for gates with a bottom clearance of 3-3/4 inch to 5 inches from the ground and 1-3/4 inches or less of ground slope. For best performance, mount at the end of the gate positioned at the lowest point along its travel path.

Technical Note - Can be mounted on gates with less than 3-3/4″ bottom clearance. However, any clearance below 3-3/4″ reduces spring travel by the same amount. For example, with 1/2″ clearance, spring travel is limited to 1/2″, so the ground slope must also be 1/2″ or less.

Spring-loaded gate casters are designed to support and guide heavy gates while providing smooth, controlled movement over uneven surfaces. These casters feature an integrated spring mechanism that allows vertical movement to absorb bumps, dips, or slopes in the ground—helping to keep the gate aligned and reducing strain on hinges and mounting hardware.

Commonly used on swing gates, fence gates, barn doors, and other large panels, spring-loaded gate casters help prevent sagging and prolong the life of your gate system. The spring action also helps maintain consistent contact with the ground, ensuring stability and easier operation.

Key Features:

Heavy-duty USA Made bracket construction for long-lasting performance
Heavy Duty USA Made Caster with 2 Inch Dual Elastomer Wheels with Ball Bearings
Built-in spring for shock absorption and ground contouring
Helps prevent gate dragging and hinge wear
At 100 lbs spring compressed 11/16", at 200 lbs spring compressed 1-1/8", at 310 lbs spring compressed 1-3/4"

Ideal for residential, agricultural, or commercial applications, spring-loaded gate casters are a simple and effective way to enhance gate function and reduce maintenance.

Wheel Qualities:

Elastomer wheels deliver floor protection, non-marking performance, and unbeatable outdoor durability. Wheel includes precision ball bearings for the best rolling & swinging experience.

Specifications:

Load Capacity (lbs.): 300	Wheel Type: Elastomer
Spring Deflection Weight Range: 10 to 310 Lbs.	Wheel Diameter: 2"
Spring Movement (Travel) : 1-3/4"	Tread Width: 2" (Dual 1" wide wheels)
Rotating Spacing (Radius): 2-5/8"	Wheel Bearing Type: Ball Bearing
Mounting Plate: 2" Wide x 5-3/8" Tall	Wheel Durometer: Shore D 65 (±5)
Bolt Hole Pattern: 1-1/4" x 3"	Swivel Construction: Double Ball Raceway
Caster Rig Color/Finish: Bright Zinc Plated	Attaching Bolt Size: 5/16" or Smaller
