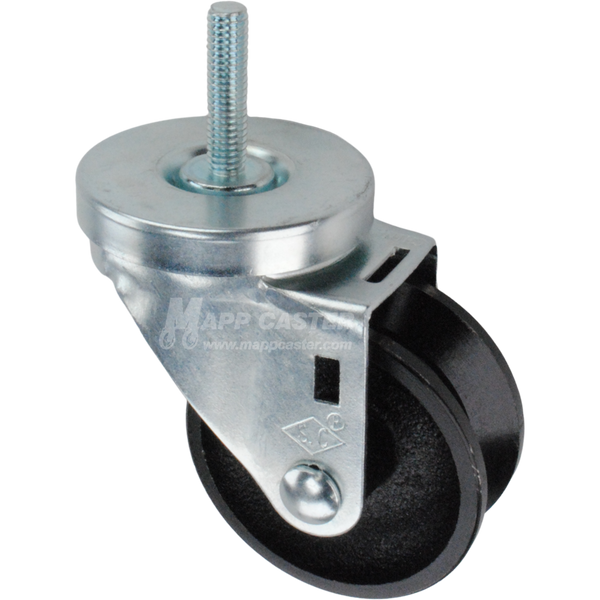

3" x 1-1/4" Cast Iron V-Groove Wheel Swivel Caster, 3/8"-16 x 1-1/2" Threaded Stem - 350 Lbs Capacity

$17.26

Part # Q523038VG

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Cast Iron V-Groove Wheel Swivel Caster, 3/8"-16 x 1-1/2" Threaded Stem - Part # Q523038VG

V-groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate off the track thanks to the tread on either side of the v-groove. While not designed to run on flat iron, there is a .25" opening in the v-groove that can be used with 3/16" flat iron tracks.

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

Specifications:

Capacity: 350 Lbs.	Stem Size: 3/8"
Wheel Diameter:3"	Stem Thread Pitch:16
Tread Width: 1-1/4"	Stem Length:1-1/2"
Groove Width:7/8"	Groove Depth: 7/16"
Tread Shape:V-Groove	Overall Height:4"
Bearing Type:Bushing	Caster Rig Material Type:Q235 Steel
Wheel Type:Cast Iron	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -45˚F to 600˚F	Weight: 1.808 Lbs
Link to Replacement Wheel: LVG314	Link to Matching Swivel Brake Caster: Q523038VGTLB
	Link to Matching Swivel Caster w/ Face Contact Brake: Q523038VGFCB

Capacity: 350 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:3/8"

Stem Thread Pitch: 16

Stem Length: 1-1/2"

Groove Width: 7/8"

Groove Depth: 7/16"

Tread Shape:V-Groove

Bearing Type: Bushing

Wheel Type: Cast Iron

Wheel Durometer:Brinell 145

Overall Height:4"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-45˚F to 600˚F

Weight:1.808 Lbs

Link to Replacement Wheel:LVG314

Link to Matching Swivel Brake Caster:Q523038VGTLB

Link to Matching Swivel Caster w/ Face Contact Brake:Q523038VGFCB
