4" x 2" Cast lron V-Groove Wheel Swivel Caster with Total Locking Brake - 600 Lbs Capacity

Part # 146VIRB420SBTL

Availablity: Usually ships in 5-7 Business Days
+


4" x 2" Cast lron V-Groove Wheel Swivel Brake Caster - Part # 146VIRB420SBTL

V groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate off the track thanks to the tread on either side of the v-groove.

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

Specifications:

Load Capacity (lbs.): 600 Link to Matching Rigid Brake Caster:  146VIR420RB
Wheel Diameter: 4" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 7-11/16"
Overall Height: 5-5/8" Swivel Construction:  Double Ball Raceway - 5/8" Kingpin
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"

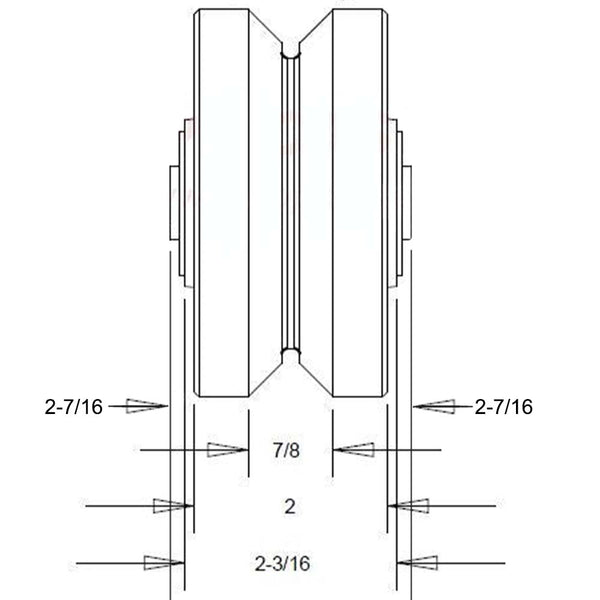

V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"

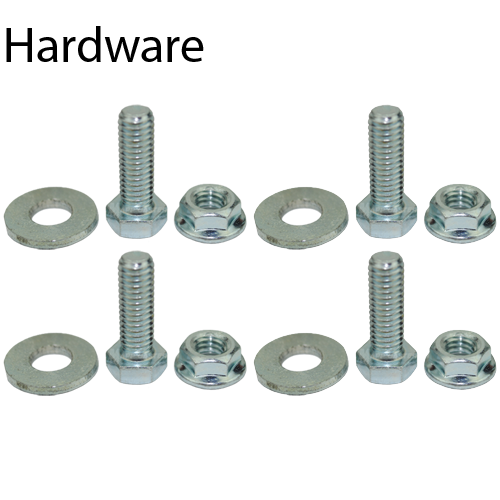

V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG420 Weight: 7.16 Lbs

PRODUCT DETAILS

4" x 2" Cast lron V-Groove Wheel Swivel Brake Caster - Part # 146VIRB420SBTL

V groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate off the track thanks to the tread on either side of the v-groove.

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

Specifications:

Load Capacity (lbs.): 600 Link to Matching Rigid Brake Caster:  146VIR420RB
Wheel Diameter: 4" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 7-11/16"
Overall Height: 5-5/8" Swivel Construction:  Double Ball Raceway - 5/8" Kingpin
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG420 Weight: 7.16 Lbs
