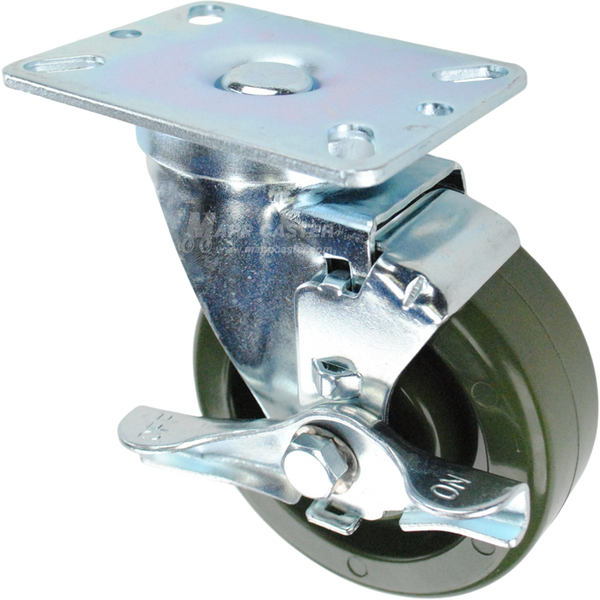

4" x 1-1/2" High Temp Epoxy Ball Bearing Wheel Swivel Brake Caster, 3-1/8" x 4-1/8" Plate - 350 lbs Capacity
$27.87
Part # Q524003OVBBTLB
4" x 1-1/2" High Temp Epoxy Ball Bearing Wheel Swivel Brake Caster, 3-1/8" x 4-1/8" Top Plate - Part # Q524003OVBBTLB
High temperature epoxy caster wheels are designed for wet & dry high heat environments making the an excellent choice for ovens, bakeries, powder coating operations & other high heat industrial environments.
Made from glass fiber & reinforced epoxy resin, the hard tread rolls easily while providing better impact resistance & excellent resistance to water, oil, grease, most acids, alkalis, chemicals & cleaning solutions. These wheels are rated for temperatures up to 500°F continuously & 550°F intermittently, with intermittent exposure defined as 30 minutes in heat followed by a 30 minute cooling cycle. They are well suited for applications that require regular wash downs or steam cleaning. Equipped with stainless steel ball bearings for maximum durability & smoother rolling.
* Offers a quieter rolling experience compared to steel wheels. If temperatures exceed 550°F & floor protection is not a concern, consider our steel wheels.
NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.
RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.
Specifications:
 Capacity: 350 Lbs. |
 Mounting Plate: 3-1/8" x 4-1/8" |
 Wheel Diameter:4" |
 Bolt Hole Pattern:1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" |
 Tread Width: 1-1/2" |
 Mounting Bolt Size:5/16" or Smaller |
 Tread Shape:Flat |
 Overall Height:5-1/8" |
 Bearing Type:Ball Bearing |
 Caster Rig Material Type:Cold Rolled Steel |
 Wheel Type:High Temp Epoxy Resin |
 Caster Rig Color/Finish:Bright Zinc Plated |
 Wheel Durometer: Shore D 95 (+/-5) |
 Swivel Radius: 3-13/32"
|
 Wheel Color: Green |
 Swivel Construction: Double Ball Raceway
|
 Temp Range: -40˚F to 500˚F (550˚F Intermittent) |
 Weight: 2.756 Lbs |
 Link to Replacement Wheel: LOV40BB
|
|
 Link to Matching Swivel Caster: Q524003OVBB
|
|
|
Capacity: 350 lbs. |
|
Wheel Diameter:4" |
|
Tread Width:1-1/2" |
|
Mounting Plate:3-1/8" x 4-1/8" |
|
Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
|
|
Mounting Bolt Size: 5/16" or Smaller
|
|
Tread Shape:Flat |
|
Bearing Type: Ball Bearing |
|
Wheel Type: High Temp Epoxy |
|
Wheel Durometer:Shore D 95 (+/-5) |
|
Overall Height:5-1/8" |
|
Swivel Radius:3-13/32" |
|
Swivel Construction: Double Ball Raceway |
|
Caster Rig Material Type: Cold Rolled Steel |
|
Caster Rig Color/Finish:Bright Zinc Plated |
|
Wheel Color:Green |
|
Temp Range:-40˚F to 500˚F (550˚F Intermittent) |
|
Weight:2.756 Lbs |
|
Link to Replacement Wheel:LOV40BB |
 Link to Matching Rigid Caster:Q5240R03OVBB |
|
Link to Matching Swivel Caster:Q524003OVBB
|
PRODUCT DETAILS
4" x 1-1/2" High Temp Epoxy Ball Bearing Wheel Swivel Brake Caster, 3-1/8" x 4-1/8" Top Plate - Part # Q524003OVBBTLB
High temperature epoxy caster wheels are designed for wet & dry high heat environments making the an excellent choice for ovens, bakeries, powder coating operations & other high heat industrial environments.
Made from glass fiber & reinforced epoxy resin, the hard tread rolls easily while providing better impact resistance & excellent resistance to water, oil, grease, most acids, alkalis, chemicals & cleaning solutions. These wheels are rated for temperatures up to 500°F continuously & 550°F intermittently, with intermittent exposure defined as 30 minutes in heat followed by a 30 minute cooling cycle. They are well suited for applications that require regular wash downs or steam cleaning. Equipped with stainless steel ball bearings for maximum durability & smoother rolling.
* Offers a quieter rolling experience compared to steel wheels. If temperatures exceed 550°F & floor protection is not a concern, consider our steel wheels.
NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.
RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.
Specifications:
|
Capacity: 350 Lbs. |
Mounting Plate: 3-1/8" x 4-1/8" |
|
Wheel Diameter:4" |
Bolt Hole Pattern:1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" |
|
Tread Width: 1-1/2" |
Mounting Bolt Size:5/16" or Smaller |
|
Tread Shape:Flat |
Overall Height:5-1/8" |
|
Bearing Type:Ball Bearing |
Caster Rig Material Type:Cold Rolled Steel |
|
Wheel Type:High Temp Epoxy Resin |
Caster Rig Color/Finish:Bright Zinc Plated |
|
Wheel Durometer: Shore D 95 (+/-5) |
Swivel Radius: 3-13/32"
|
|
Wheel Color: Green |
Swivel Construction: Double Ball Raceway
|
|
Temp Range: -40˚F to 500˚F (550˚F Intermittent) |
Weight: 2.756 Lbs |
|
Link to Replacement Wheel: LOV40BB
|
|
|
Link to Matching Swivel Caster: Q524003OVBB
|
|
|
Capacity: 350 lbs. |
|
Wheel Diameter:4" |
|
Tread Width:1-1/2" |
|
Mounting Plate:3-1/8" x 4-1/8" |
|
Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
|
|
Mounting Bolt Size: 5/16" or Smaller
|
|
Tread Shape:Flat |
|
Bearing Type: Ball Bearing |
|
Wheel Type: High Temp Epoxy |
|
Wheel Durometer:Shore D 95 (+/-5) |
|
Overall Height:5-1/8" |
|
Swivel Radius:3-13/32" |
|
Swivel Construction: Double Ball Raceway |
|
Caster Rig Material Type: Cold Rolled Steel |
|
Caster Rig Color/Finish:Bright Zinc Plated |
|
Wheel Color:Green |
|
Temp Range:-40˚F to 500˚F (550˚F Intermittent) |
|
Weight:2.756 Lbs |
|
Link to Replacement Wheel:LOV40BB |
|
Link to Matching Rigid Caster:Q5240R03OVBB |
|
Link to Matching Swivel Caster:Q524003OVBB
|
