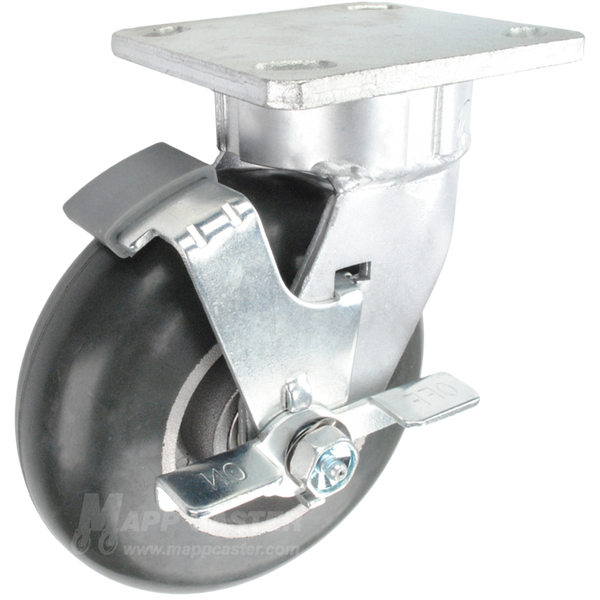

6" x 2" Balloon Cushion Wheel Kingpinless Swivel Brake Caster - 650 Lbs Capacity

$113.56

Part # P51062RNDTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 2" Balloon Cushion Wheel Kingpinless Swivel Brake Caster - Part # P51062RNDTLB

Balloon Cushioned wheels have a rounded rubber tread molded to an aluminum core. The rounded tread minimizes friction and enables the wheel to turn easily. This wheel offers the best shock absorbing, cushioned ride available of rubber wheels. It rolls easily over debris and small obstructions, such as electrical cords. This caster wheel also has superior floor protection, ultra-quiet rolling, and is non marking. The down side is this wheel has lower capacities than other rubber wheels. For higher capacity wheels with similar characteristic, check out our thermoplastic rubber wheels.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 650 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:6"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Crowned	Overall Height:7-1/2"
Bearing Type:Ball Bearing	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Rubber on Aluminum	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore A 65 (+/-5)	Swivel Radius: 4-9/16"
Wheel Color: Grey	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -40˚F to 180˚F	Weight: 7.5 Lbs
Link to Replacement Wheel: QRND6M5	Link to Matching Rigid Brake Caster: P50062RNDTLB

Capacity: 650 lbs.

Wheel Diameter:6"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Crowned

Bearing Type: Ball Bearing

Wheel Type: Rubber on Aluminum

Wheel Durometer:Shore A 65 (+/-5)

Overall Height:7-1/2"

Swivel Radius:4-9/16"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Grey

Temp Range:-40˚F to 180˚F

Weight:7.5 Lbs

Link to Replacement Wheel:QRND6M5

Link to Matching Rigid Brake Caster:P50062RNDTLB
