6" x 2" Balloon Cushion Wheel Swivel Caster with Face Contact Brake - 650 Lbs Capacity

$35.80

Part # 146RND620SFCB

Availablity: Usually ships in 5-7 Business Days

PRODUCT DETAILS

6" x 2" Balloon Cushion Wheel Swivel Caster with Face Contact Brake - Part # 146RND620SFCB

Balloon Cushioned wheels have a rounded rubber tread molded to an aluminum core. The rounded tread minimizes friction and enables the wheel to turn easily. This wheel offers the best shock absorbing, cushioned ride available of rubber wheels. It rolls easily over debris and small obstructions, such as electrical cords. This caster wheel also has superior floor protection, ultra-quiet rolling, and is non marking. The down side is this wheel has lower capacities than other rubber wheels. For higher capacity wheels with similar characteristic, check out our thermoplastic rubber wheels.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Load Capacity (lbs.): 650	Link to Matching Rigid Brake Caster: 146RND620RB
Wheel Diameter: 6"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Grey Soft Rubber	Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball	Swivel Radius: 7-3/8"
Overall Height: 7-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin

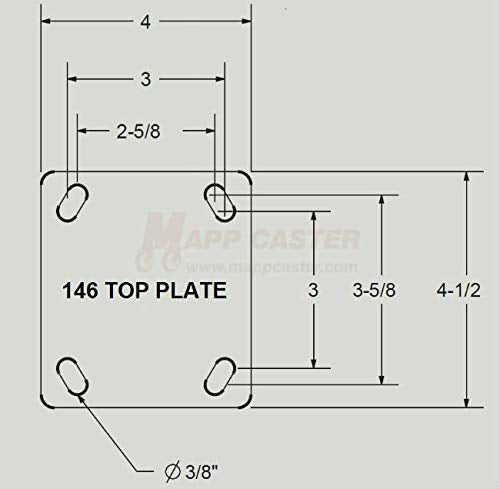

Temp Range: -20°F to 160°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 75 (+/-5)	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Grey	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QRND6M5	Weight: 6.676 lbs.
