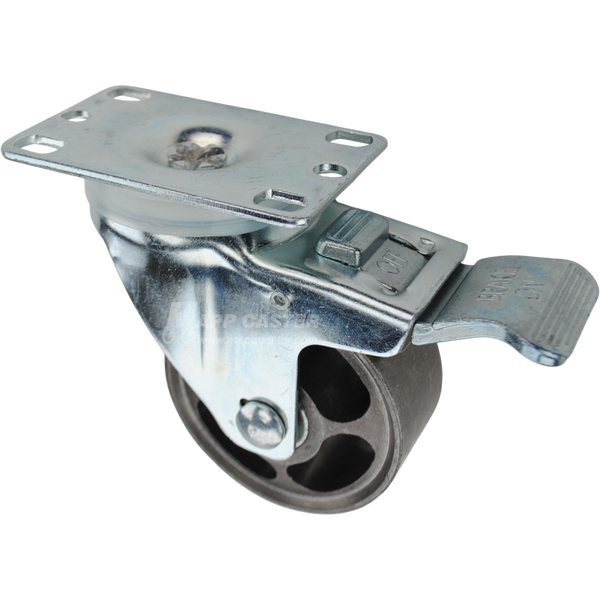

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster w/ Total Lock Brake, 2-3/8" x 3-5/8" Top Plate - 300 lbs Capacity

$36.95

Part # Q523001STLRBSWB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster w/ Total Lock Brake, 2-3/8" x 3-5/8" Top Plate - Part # Q523001STLRBSWB

Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

* With the thin metal used in the construction of the total lock brake mechanism, the overall temperature rating of the caster is limited to 180°F.

Specifications:

Capacity: 300 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:3"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width: 1-1/4"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:4-1/8"
Bearing Type:Roller Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 4-3/8"
Wheel Color: Silver	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -40˚F to 180˚F	Weight: 2.602 Lbs
Link to Replacement Wheel: 503125-US	Link to Matching Rigid Caster: Q5230R01STLRB
Link to Matching Swivel Caster: Q523001STLRB

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: Roller Bearing

Wheel Type: Sintered Steel

Wheel Durometer:Brinell 145

Overall Height:4-1/8"

Swivel Radius:4-3/8"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Silver

Temp Range:-40˚F to 180˚F

Weight:2.602 Lbs

Link to Replacement Wheel:503125-US

Link to Matching Rigid Caster:Q5230R01STLRB

Link to Matching Swivel Caster:Q523001STLRB
