$28.56

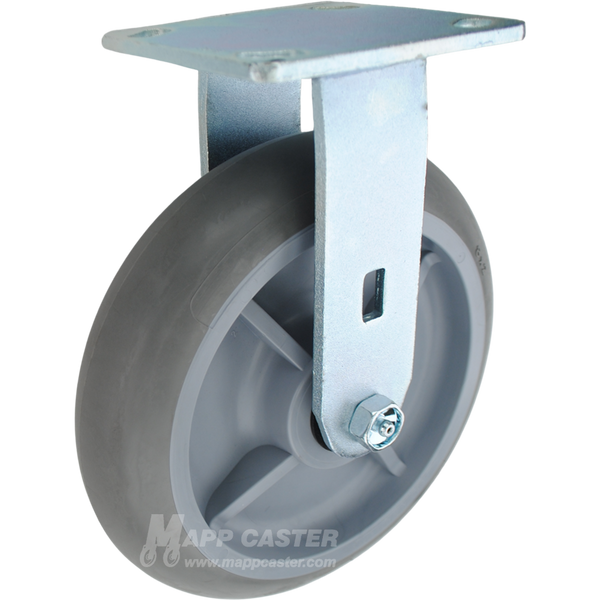

Part # 146PERC820R
Availablity: Usually ships in 24-48 hoursThermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels.
*This caster is extremely popular for sheet rock dollies*
| Load Capacity (lbs.): 600 | Link to Matching Swivel Caster: 146PERC820S |
| Wheel Diameter: 8" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Thermoplastic Rubber | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 9-1/2" | Swivel Construction: N/A |
| Temp Range: -20°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| Wheel Durometer: Shore A 65 (+/-5) | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel Color: Grey | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: G58556 | Weight: 4.50 lbs. |
Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels.
*This caster is extremely popular for sheet rock dollies*
| Load Capacity (lbs.): 600 | Link to Matching Swivel Caster: 146PERC820S |
| Wheel Diameter: 8" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Thermoplastic Rubber | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 9-1/2" | Swivel Construction: N/A |
| Temp Range: -20°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| Wheel Durometer: Shore A 65 (+/-5) | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel Color: Grey | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: G58556 | Weight: 4.50 lbs. |
