Heavy Duty Spring Loaded Gate Caster Bracket with Thermplastic Rubber Wheel - 500 lbs. Capcity
$128.72
Part # 7QSL76-PERB
Heavy Duty Spring Loaded Gate Caster Bracket with Thermoplastic Rubber Wheel - Part # 7QSL76-PERB
Designed for gates with a bottom clearance of 1 inch to 9-1/2 inches from the ground and 3/4" or less of ground slope. For best performance, mount at the end of the gate positioned at the lowest point along its travel path..
Spring-loaded gate casters are designed to support and guide heavy gates while providing smooth, controlled movement over uneven surfaces. These casters feature an integrated spring mechanism that allows vertical movement to absorb bumps, dips, or slopes in the ground—helping to keep the gate aligned and reducing strain on hinges and mounting hardware.
Commonly used on swing gates, fence gates, barn doors, and other large panels, spring-loaded gate casters help prevent sagging and prolong the life of your gate system. The spring action also helps maintain consistent contact with the ground, ensuring stability and easier operation.
Key Features:
- Heavy-duty construction for long-lasting performance
- Thermoplastic Rubber Wheel with maintenance free ball bearings.
- Once of our favorite wheels offering good roll-ability and cushioning while effectively handling debris.
- Built-in spring for shock absorption and ground contouring
- Helps prevent gate dragging and hinge wear
- Easy to install with bolt-on or plate mount options
Ideal for residential, agricultural, or commercial applications, spring-loaded gate casters are a simple and effective way to enhance gate function and reduce maintenance.
Wheel Qualities:
Thermoplastic rubber wheels combine the easy rolling & durability of hard treads with the quiet, floor-protecting, cushioned ride of soft treads great for rolling over gravel. Consider our balloon cushion wheel option for even better experience over rough floors. They resist weather, chemicals, water, steam, & reject debris—ideal for non-marking, smooth, quiet operation. Equipped with precision ball bearings for the best rolling & swinging experience.
Specifications:
| Load Capacity (lbs.): 500 | Wheel Type: Thermoplastic Rubber |
| Spring Deflection Wight Range: 180 to 500 Lbs. | Wheel Diameter: 6" |
| Spring Movement (Travel) : 3/4" | Tread Width: 2" |
| Rotating Spacing (Radius): 5-1/4" | Wheel Bearing Type: Maintenance Free Ball Bearings |
| Mounting Plate: 4" Wide x 11" Tall | Wheel Durometer: Shore A 65 (+/-5) |

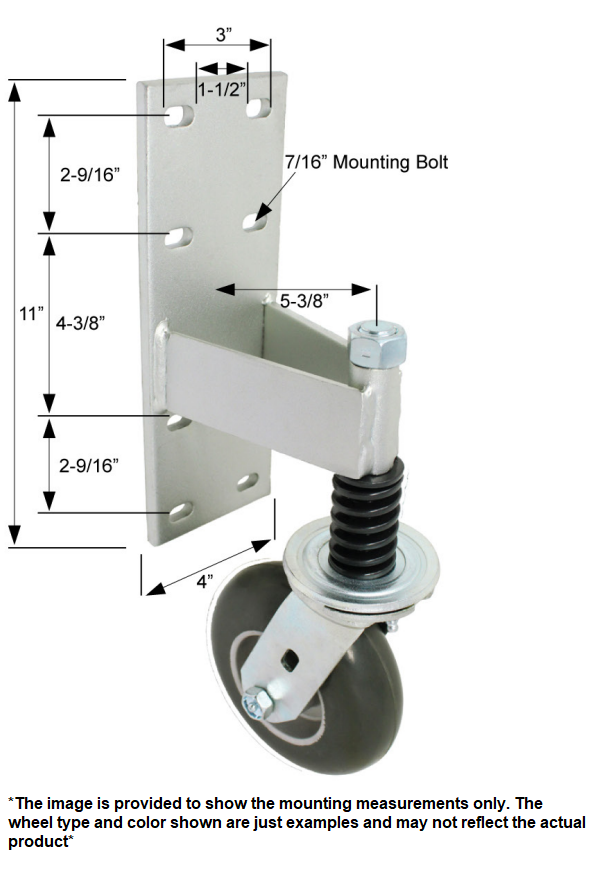

| Bolt Hole Pattern: See Pictures for Drawing | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Caster Rig Color/Finish: Bright Zinc Plated | Attaching Bolt Size: 7/16" or Smaller |
PRODUCT DETAILS
Heavy Duty Spring Loaded Gate Caster Bracket with Thermoplastic Rubber Wheel - Part # 7QSL76-PERB
Designed for gates with a bottom clearance of 1 inch to 9-1/2 inches from the ground and 3/4" or less of ground slope. For best performance, mount at the end of the gate positioned at the lowest point along its travel path..
Spring-loaded gate casters are designed to support and guide heavy gates while providing smooth, controlled movement over uneven surfaces. These casters feature an integrated spring mechanism that allows vertical movement to absorb bumps, dips, or slopes in the ground—helping to keep the gate aligned and reducing strain on hinges and mounting hardware.
Commonly used on swing gates, fence gates, barn doors, and other large panels, spring-loaded gate casters help prevent sagging and prolong the life of your gate system. The spring action also helps maintain consistent contact with the ground, ensuring stability and easier operation.
Key Features:
- Heavy-duty construction for long-lasting performance
- Thermoplastic Rubber Wheel with maintenance free ball bearings.
- Once of our favorite wheels offering good roll-ability and cushioning while effectively handling debris.
- Built-in spring for shock absorption and ground contouring
- Helps prevent gate dragging and hinge wear
- Easy to install with bolt-on or plate mount options
Ideal for residential, agricultural, or commercial applications, spring-loaded gate casters are a simple and effective way to enhance gate function and reduce maintenance.
Wheel Qualities:
Thermoplastic rubber wheels combine the easy rolling & durability of hard treads with the quiet, floor-protecting, cushioned ride of soft treads great for rolling over gravel. Consider our balloon cushion wheel option for even better experience over rough floors. They resist weather, chemicals, water, steam, & reject debris—ideal for non-marking, smooth, quiet operation. Equipped with precision ball bearings for the best rolling & swinging experience.
Specifications:
| Load Capacity (lbs.): 500 | Wheel Type: Thermoplastic Rubber |
| Spring Deflection Wight Range: 180 to 500 Lbs. | Wheel Diameter: 6" |
| Spring Movement (Travel) : 3/4" | Tread Width: 2" |
| Rotating Spacing (Radius): 5-1/4" | Wheel Bearing Type: Maintenance Free Ball Bearings |
| Mounting Plate: 4" Wide x 11" Tall | Wheel Durometer: Shore A 65 (+/-5) |
| Bolt Hole Pattern: See Pictures for Drawing | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Caster Rig Color/Finish: Bright Zinc Plated | Attaching Bolt Size: 7/16" or Smaller |
