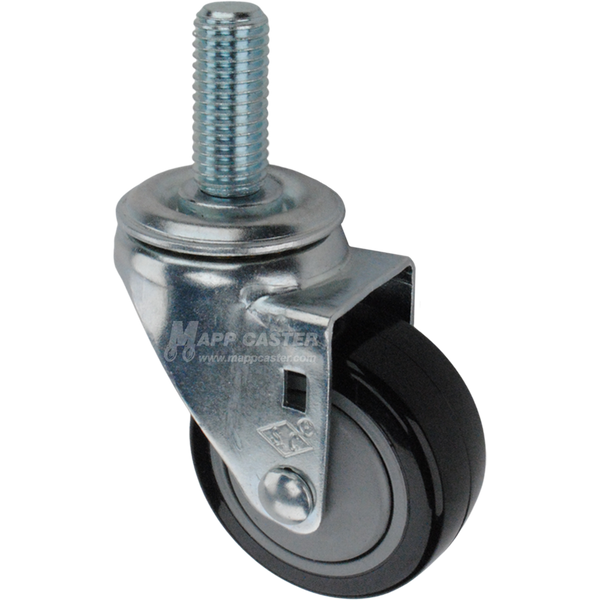

3" x 1-1/4" Polyurethane Wheel Swivel Caster, 3/4"-10 x 1-3/4" Threaded Stem - 300 lbs Capacity

$19.33

Part # 8GS30KP-PLY-3/4

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Polyurethane Wheel Swivel Caster, 3/4"-10 x 1-3/4" Threaded Stem - Part # 8GS30KP-PLY-3/4

Polyurethane on polyolefin wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on polyolefin wheels are going to be the most economically priced of the polyurethane wheels and great for general industrial applications.

These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 3/4"
Wheel Diameter:3"	Stem Thread Pitch:10
Tread Width: 1-1/4"	Stem Length:1-3/4"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Polyurethane on Polyolefin	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 95 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -20˚F to 180˚F	Weight: 1.282 Lbs
Link to Replacement Wheel: QPLY3J3	Link to Matching Swivel Brake Caster: 8GS30KP-PLYTLB-3/4
Link to Matching Swivel Caster w/ Total Locking Brake: 8GT30KP-PLY-3/4

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:3/4"

Stem Thread Pitch: 10

Stem Length: 1-3/4"

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: Polyurethane on Polyolefin

Wheel Durometer:Shore A 95 (+/-5)

Overall Height:4"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-20˚F to 180˚F

Weight:1.282 Lbs

Link to Replacement Wheel:QPLY3J3

Link to Matching Swivel Brake Caster:8GS30KP-PLYTLB-3/4

Link to Matching Swivel Caster w/ Total Lock Brake:8GT30KP-PLY-3/4

PRODUCT DETAILS

3" x 1-1/4" Polyurethane Wheel Swivel Caster, 3/4"-10 x 1-3/4" Threaded Stem - Part # 8GS30KP-PLY-3/4

These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 3/4"
Wheel Diameter:3"	Stem Thread Pitch:10
Tread Width: 1-1/4"	Stem Length:1-3/4"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Polyurethane on Polyolefin	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 95 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -20˚F to 180˚F	Weight: 1.282 Lbs
Link to Replacement Wheel: QPLY3J3	Link to Matching Swivel Brake Caster: 8GS30KP-PLYTLB-3/4
Link to Matching Swivel Caster w/ Total Locking Brake: 8GT30KP-PLY-3/4
