Home / 9-1/2" / 8" x 2" High Temp Nylon Wheel Rigid Brake Caster - 1,250 Lbs Capacity

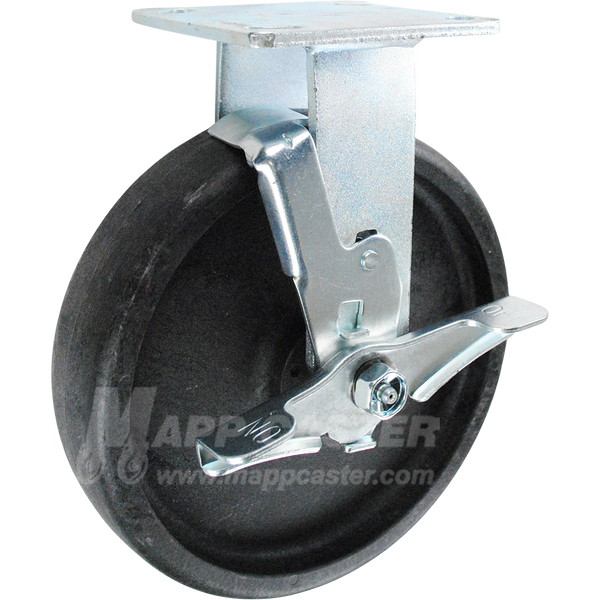

8" x 2" High Temp Nylon Wheel Rigid Brake Caster - 1,250 Lbs Capacity

$76.67

Part # 146HEAT820RB

Availablity: Usually ships in 24-48 hours
+

8" x 2" High Temp Nylon Wheel Rigid Caster with Brake- Part #: 146HEAT820RB

High Temperature Glass Filled Nylon caster wheels have a temperature range up to 475˚F continuous and 550 ˚F intermittent. Made of  a high temperature glass filled nylon mixture, these caster wheels can be in both wet and dry high temperature applications. The hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. They offer longer wear than high temp phenolic wheels, are kinder on floors, and quieter rolling.

This is one of our favorite high temperature wheels and we recommend it for about every high temperature application. If you need even more capacity check out our steel & metal wheel casters.

Specifications:

Load Capacity (lbs.): 1,250 Link to Matching Swivel Brake Caster: 146HEAT820SB
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: High Temp Swivel or Rigid Caster: Rigid with Top Lock Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 9-1/2" Swivel Construction: N/A
Temp Range: -70oF to +550oF Mounting Plate: 4" x 4-1/2"
Wheel Durometer: 85 Shore D Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: R82171E Weight: 5.75 lbs.

PRODUCT DETAILS

8" x 2" High Temp Nylon Wheel Rigid Caster with Brake- Part #: 146HEAT820RB

High Temperature Glass Filled Nylon caster wheels have a temperature range up to 475˚F continuous and 550 ˚F intermittent. Made of  a high temperature glass filled nylon mixture, these caster wheels can be in both wet and dry high temperature applications. The hard tread rolls easily and is resistant to oil, grease, most acids, chemicals, and cleaning solutions. They offer longer wear than high temp phenolic wheels, are kinder on floors, and quieter rolling.

This is one of our favorite high temperature wheels and we recommend it for about every high temperature application. If you need even more capacity check out our steel & metal wheel casters.

Specifications:

Load Capacity (lbs.): 1,250 Link to Matching Swivel Brake Caster: 146HEAT820SB
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: High Temp Swivel or Rigid Caster: Rigid with Top Lock Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 9-1/2" Swivel Construction: N/A
Temp Range: -70oF to +550oF Mounting Plate: 4" x 4-1/2"
Wheel Durometer: 85 Shore D Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: R82171E Weight: 5.75 lbs.
