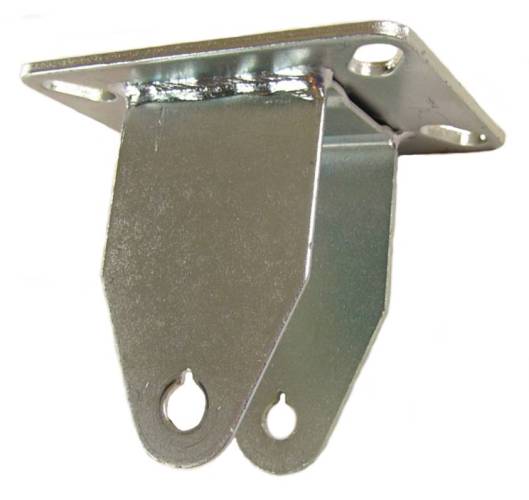

4" x 1-1/4" Rigid Caster Rig with 3-1/8" x 4-1/8" Top Plate - Part # Q5040R03YAN

Part # Q5040R03YAN

+


4" x 1-1/4" Rigid Caster Rig with 3-1/8" x 4-1/8" Top Plate - Part # Q5040R03YAN

The rig is designed for 4" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 4" diameter wheel, the rig produces an overall height of 5-1/8".

SPECIFICATIONS

Load Capacity (lbs.): 350 Mounting Plate: 3-1/8" x 4-1/8"
Designed for Wheel Diameter of: 4" Bolt Hole Pattern: 1-3/4" x 2-15/16"  to 2-3/8" x 3-3/8"
Designed for Tread Width of: 1-1/4" Mounting Bolt Size: 5/16" or Smaller
Wheel Hub Length: Up to 1-5/8" Swivel Radius: N/A
Overall Height (with wheel): 5-1/8" Swivel Construction: N/A
Axle Size: 3/8" Caster Rig Material Type: Cold Rolled Steel
Link to Matching Swivel Caster: Q504003YAN Caster Rig Color/Finish: Bright Zinc Plated
Weight (lbs): 0.4 Leg Thickness: 0.1"



Popular Wheels for this rig: Capacity is the lower of the rig or wheel

LSS414 4" Semi-Steel wheel
QHR4H3 4" Hard Rubber wheel
QMIR4G3 4" Thermoplastic Rubber wheel
QPLY4J3 4" Polyurethane wheel

PRODUCT DETAILS

4" x 1-1/4" Rigid Caster Rig with 3-1/8" x 4-1/8" Top Plate - Part # Q5040R03YAN

The rig is designed for 4" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 4" diameter wheel, the rig produces an overall height of 5-1/8".

SPECIFICATIONS

Load Capacity (lbs.): 350 Mounting Plate: 3-1/8" x 4-1/8"
Designed for Wheel Diameter of: 4" Bolt Hole Pattern: 1-3/4" x 2-15/16"  to 2-3/8" x 3-3/8"
Designed for Tread Width of: 1-1/4" Mounting Bolt Size: 5/16" or Smaller
Wheel Hub Length: Up to 1-5/8" Swivel Radius: N/A
Overall Height (with wheel): 5-1/8" Swivel Construction: N/A
Axle Size: 3/8" Caster Rig Material Type: Cold Rolled Steel
Link to Matching Swivel Caster: Q504003YAN Caster Rig Color/Finish: Bright Zinc Plated
Weight (lbs): 0.4 Leg Thickness: 0.1"



Popular Wheels for this rig: Capacity is the lower of the rig or wheel

LSS414 4" Semi-Steel wheel
QHR4H3 4" Hard Rubber wheel
QMIR4G3 4" Thermoplastic Rubber wheel
QPLY4J3 4" Polyurethane wheel
