5" x 2" Solid Polyurethane Wheel Rigid Brake Caster with 5" x 5-1/2" Top Plate - 800 Lbs Capacity

$56.54

Part # 25ERSPUTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

5" x 2" Solid Polyurethane Wheel Rigid Brake Caster - Part #: 25ERSPUTLB

Solid polyurethane wheels feature a one-piece construction that eliminates the tread de-bonding failures commonly seen with traditional polyurethane treaded wheels, while still delivering high load capacities & excellent durability. The non-marking tread is floor protective & safe for hardwood, tile & other finished surfaces. With a hard tread like Shore D 60, these wheels have minimal deformation under load which improves push efficiency. Additionally its moderately crowned tread improves swiveling & maneuverability. This wheel is ideal for smooth floors.

Designed for demanding wet environments, this wheel is fully washable & steam cleanable while resisting grease, oils, cleaning chemicals, blood & brine. Its durability makes it a popular choice for food industry, washdown & sanitary applications. Not recommended for use around acids. For even more resistance, we recommend looking at our stainless steel casters.

Polyurethane wheels come in variety of colors, tread shapes & durometers to meet your application needs. While the color doesn’t affect performance, the tread shape & durometer will.

Specifications:

Load Capacity (lbs.): 800	Link to Matching Swivel Brake Caster: 25ESSPUTLB
Wheel Diameter: 5"	Caster Rig Material Type: ASTM 1045 Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Solid Polyurethane	Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options	Swivel Radius: N/A
Overall Height: 6-1/2"	Swivel Construction: N/A

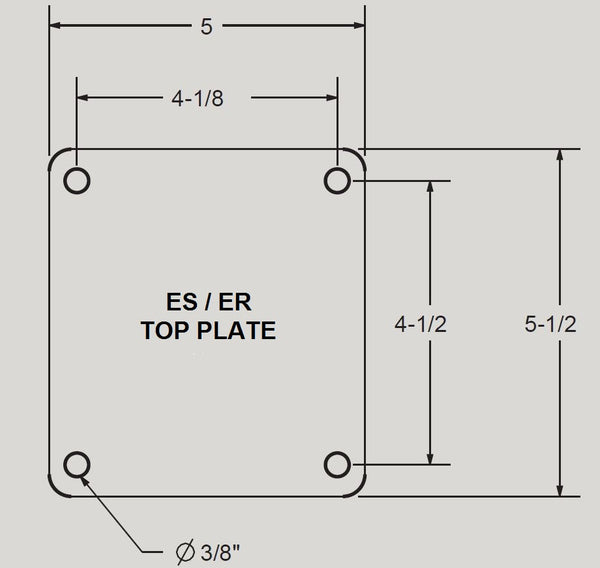

Temp Range: -50 to 180˚F	Mounting Plate: 5" x 5-1/2"
Wheel Hardness: Shore D 60 (+/-5)	Bolt Hole Pattern: 4-1/8" X 4-1/2"
Wheel Color: Blue	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LSPU520	Weight: 5.78 lbs.

PRODUCT DETAILS

5" x 2" Solid Polyurethane Wheel Rigid Brake Caster - Part #: 25ERSPUTLB

Polyurethane wheels come in variety of colors, tread shapes & durometers to meet your application needs. While the color doesn’t affect performance, the tread shape & durometer will.

Specifications:

Load Capacity (lbs.): 800	Link to Matching Swivel Brake Caster: 25ESSPUTLB
Wheel Diameter: 5"	Caster Rig Material Type: ASTM 1045 Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Solid Polyurethane	Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options	Swivel Radius: N/A
Overall Height: 6-1/2"	Swivel Construction: N/A
Temp Range: -50 to 180˚F	Mounting Plate: 5" x 5-1/2"
Wheel Hardness: Shore D 60 (+/-5)	Bolt Hole Pattern: 4-1/8" X 4-1/2"
Wheel Color: Blue	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LSPU520	Weight: 5.78 lbs.
