Long Straight Line Skate HSD-50 | 25 Ton Capacity - Steel Rollers

$917.00

Part # HSD-50

Availablity: Usually ships in 5-7 Business Days
+

LONG STRAIGHT LINE SKATE 25 TON CAPACITY WITH STEEL ROLLERS - Part #: HSD-50

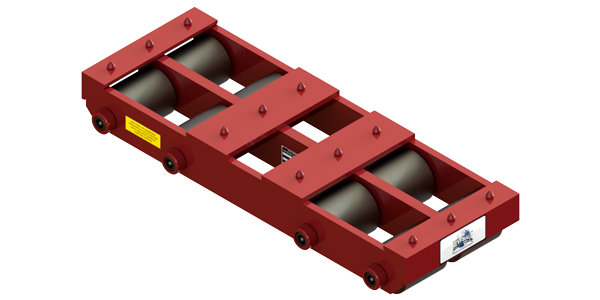

This Hevi-Haul Skate is a low profile roller dolly designed for straight line moves with maximum load distribution, stability, and climbing ability. The HSD-50 works great on floors with imperfections with it's ability to bridge cracks and uneven surfaces. It features a total of four 3-1/4" Diameter Steel Rollers on the front and back axles and four 3-1/2" Diameter Steel Rollers on the two center axles. The frame is constructed of all steel and fully welded to take decades of abuse in the field. Steel Rollers are interchangeable with Polyurethane Coated Rollers for applications where floor protection is key.

With Polyurethane Coated Rollers in our standard configuration this model reduces to a 20 tons per Skate capacity. When fitted with all equal sized Polyurethane Coated Rollers this model can maintain a 25 tons per Skate capacity.

Capacity:  25 Tons (50,000 lbs.) Roller Material: Steel
Length: 28" Width: 11-1/4"
Height: 4-5/8" Weight: 140 lbs.
Color:  Hevi-Haul Red





Coefficient of Friction: Load x .05 = Force Required to Move*

    PRODUCT DETAILS

    LONG STRAIGHT LINE SKATE 25 TON CAPACITY WITH STEEL ROLLERS - Part #: HSD-50

    This Hevi-Haul Skate is a low profile roller dolly designed for straight line moves with maximum load distribution, stability, and climbing ability. The HSD-50 works great on floors with imperfections with it's ability to bridge cracks and uneven surfaces. It features a total of four 3-1/4" Diameter Steel Rollers on the front and back axles and four 3-1/2" Diameter Steel Rollers on the two center axles. The frame is constructed of all steel and fully welded to take decades of abuse in the field. Steel Rollers are interchangeable with Polyurethane Coated Rollers for applications where floor protection is key.

    With Polyurethane Coated Rollers in our standard configuration this model reduces to a 20 tons per Skate capacity. When fitted with all equal sized Polyurethane Coated Rollers this model can maintain a 25 tons per Skate capacity.

    Capacity:  25 Tons (50,000 lbs.) Roller Material: Steel
    Length: 28" Width: 11-1/4"
    Height: 4-5/8" Weight: 140 lbs.
    Color:  Hevi-Haul Red





    Coefficient of Friction: Load x .05 = Force Required to Move*
