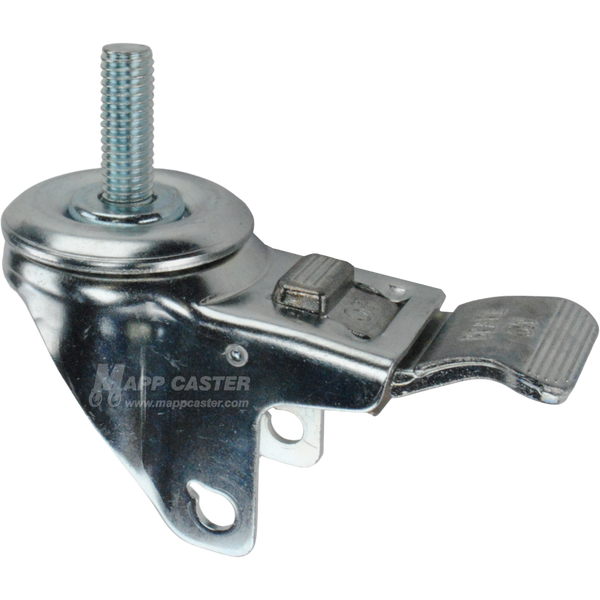

3" x 1-1/4" Swivel Caster Rig with Total Lock Brake, 1/2"-13 x 1-1/2" Threaded Stem - 350 Lbs Capacity

$20.18

Part # Q523022YANSWB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Swivel Caster Rig with Total Lock Brake, 1/2"-13 x 1-1/2" Threaded Stem - Part # Q523022YANSWB

This rig is designed for 3" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 3" diameter wheel, the rig produces an overall height of 4".

* ONLY to be used with 3" diameter wheels otherwise the brake will be nonfunctional as the pad will no longer make contact the wheel.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

Specifications:

Load Capacity (lbs.): 350	Stem Size: 1/2"
Designed for Wheel Diameter of: 3"	Stem Length: 1-1/2"
Designed for Tread Width of: 1-1/4"	Stem Thread: 13
Wheel Hub Length: Up to 1-5/8"	Swivel Construction: Double Ball Raceway - Kingpin
Overall Height (with wheel): 4"	Swivel Radius: 4-3/8"
Axle Size: 3/8"	Caster Rig Material Type: Q235 Steel
Leg Thickness: 0.1"	Caster Rig Color/Finish: Bright Zinc Plated
Link to Matching Swivel Caster: Q503022YAN	Weight (lbs): 1.14

Popular Wheels for this rig: Capacity is the lower of the rig or wheel

QSTL3H3	3" Steel wheel
QHR3H3	3" Hard Rubber wheel
QMIR3G3	3" Thermoplastic Rubber wheel
QPLY3J3	3" Polyurethane wheel
