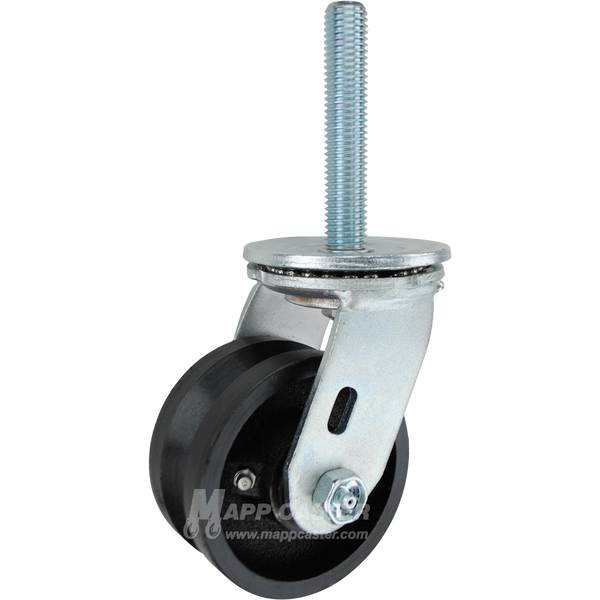

4" x 2" Cast Iron V-Groove Wheel Swivel Caster, 3/4"-10 x 4 Threaded Stem - 600 Lbs Capacity

$46.72

Part # 7RTP042VIRB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

4" x 2" Cast Iron V-Groove Wheel Swivel Caster, 3/4"-10 x 4 Threaded Stem - Part # 7RTP042VIRB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 600 Lbs.	Stem Size: 3/4"
Wheel Diameter:4"	Stem Thread Pitch:10
Tread Width: 2"	Stem Length:4"
Tread Shape: V-Groove	Overall Height:5-5/8"
Bearing Type:See Bearings Options	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron V-Groove	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 3-1/4"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 600˚F	Weight: 5.972 Lbs
Link to Replacement Wheel: LVG420	Link to Matching Swivel Brake Caster: 7RTP042VIRBTLB

Capacity: 600 lbs.

Wheel Diameter:4"

Tread Width:2"

Stem Size:3/4"

Stem Thread Pitch: 10

Stem Length: 4"

Tread Shape:V-Groove

Bearing Type: See Bearing Options

Wheel Type: Cast Iron V-Groove

Wheel Durometer:Brinell 145

Overall Height:5-5/8"

Swivel Radius:3-1/4"

Swivel Construction: Double Ball Raceway - 5/8" Kingpin

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-45˚F to 600˚F

Weight:5.972Lbs

Link to Replacement Wheel:LVG420

Link to Matching Swivel Brake Caster:7RTP042VIRBTLB
