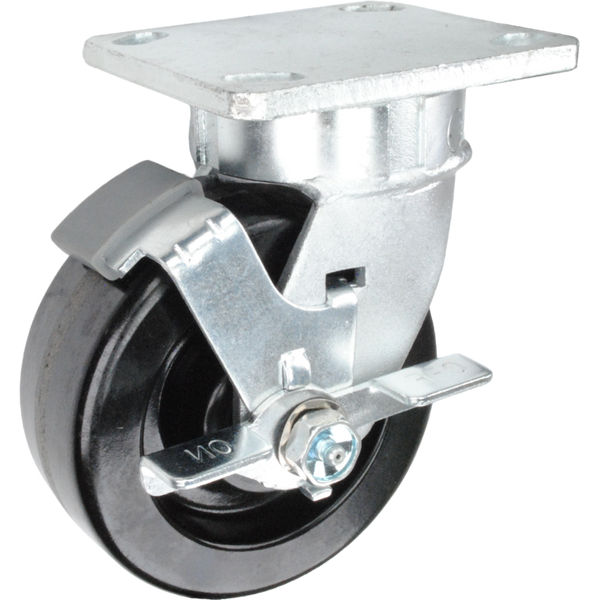

5" x 2" Phenolic Wheel Kingpinless Swivel Brake Caster - 1,000 Lbs Capacity

Part # P5105201301-B

Availablity: Usually ships in 24-48 hours
+


5" x 2" Phenolic Wheel Kingpinless Swivel Caster- Part #: P5105201301-B

Phenolic wheels are a great alternative to steel wheels. Phenolic wheels give you similar capacities to steel wheels, however, they provide better floor protection, slightly quieter rolling, do not rust, & are more economically priced.

Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity and high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads, such as storage bins, dumpsters, and BBQ Pits. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.

We recommend phenolic wheels for many applications, however, if you need more floor protection, a cushioned ride, or a quiet rolling wheel, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.):  1,000 Link to Matching Rigid Caster: P5005201302
Wheel Diameter: 5" Caster Rig Material Type:  AISI 1045 Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Phenolic Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: 3-11/16"
Overall Height: 6-1/2" Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range:  -50°F to 250°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer:  Shore D 90 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel:  QPHN5M0 Weight: 6.50 lbs

PRODUCT DETAILS

5" x 2" Phenolic Wheel Kingpinless Swivel Caster- Part #: P5105201301-B

Phenolic wheels are a great alternative to steel wheels. Phenolic wheels give you similar capacities to steel wheels, however, they provide better floor protection, slightly quieter rolling, do not rust, & are more economically priced.

Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity and high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads, such as storage bins, dumpsters, and BBQ Pits. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.

We recommend phenolic wheels for many applications, however, if you need more floor protection, a cushioned ride, or a quiet rolling wheel, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.):  1,000 Link to Matching Rigid Caster: P5005201302
Wheel Diameter: 5" Caster Rig Material Type:  AISI 1045 Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Phenolic Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: See Bearings Options Swivel Radius: 3-11/16"
Overall Height: 6-1/2" Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range:  -50°F to 250°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer:  Shore D 90 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel:  QPHN5M0 Weight: 6.50 lbs
