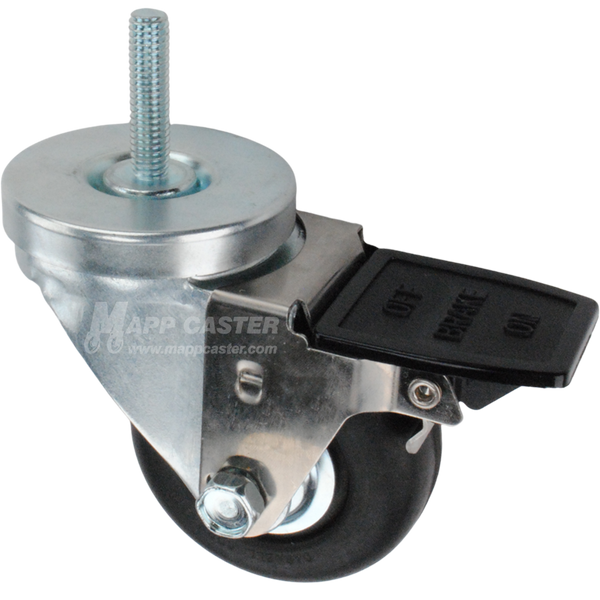

3" x 1-1/4" Neoprene Wheel Swivel Caster w/ Face Contact Brake, 3/8"-16 x 1-1/2" Threaded Stem - 200 lbs Capacity

$41.90

Part # Q523038NEOFCB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Neoprene Wheel Swivel Caster w/ Face Contact Brake, 3/8"-16 x 1-1/2" Threaded Stem - Part # Q523038NEOFCB

Neoprene rubber makes a soft, solid wheel is specially formulated with a premium compound to withstand wear and abrasion while resisting oil, grease, and most chemicals. Soft tread is permanently molded to a hard center core for added strength and higher load capacities. Very low rolling resistance, high impact strength, non-staining wheel. Will not crack or become brittle or sticky.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 200 Lbs.	Stem Size: 3/8"
Wheel Diameter:3"	Stem Thread Pitch:16
Tread Width: 1-1/4"	Stem Length:1-1/2"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Neoprene	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 90 (+/-5)	Swivel Radius: 4-1/4"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -20˚F to 180˚F	Weight: 1.706 Lbs
Link to Replacement Wheel: 463XEZN-RD	Link to Matching Swivel Caster: Q523038NEO

Capacity: 200 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:3/8"

Stem Thread Pitch: 16

Stem Length: 1-1/2"

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: Neoprene

Wheel Durometer:Shore A 90 (+/-5)

Overall Height:4"

Swivel Radius:4-1/4"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-20˚F to 180˚F

Weight:1.706 Lbs

Link to Replacement Wheel:463XEZN-RD

Link to Matching Swivel Caster:Q523038NEO
