Push/Pull Bracket for 5/16" Threaded Stems

$35.56

Part # BPP4

PRODUCT DETAILS

Push/Pull Bracket for 5/16" Threaded Stems - Part # BPP4

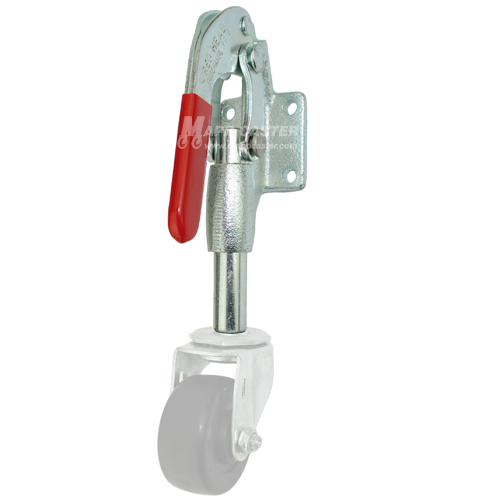

Push/pull bracket for casters with 5/16-18 threaded stems

Raises or lowers casters from floor
Designed for use with 5/16"-18 threaded stem casters or glides (sold separately.)
Thread depth of 3/4" (how far the 5/16" bolt can screw in)
Capacity of the bracket is 600 pounds but when used with a caster or glide you must go by the lower capacity. For example if the caster being used with the bracket has a 200 pound capacity, then the capacity would be 200 pounds.
Plunger travel of 1"

PRODUCT DETAILS

Push/Pull Bracket for 5/16" Threaded Stems - Part # BPP4

Push/pull bracket for casters with 5/16-18 threaded stems

Raises or lowers casters from floor
Designed for use with 5/16"-18 threaded stem casters or glides (sold separately.)
Thread depth of 3/4" (how far the 5/16" bolt can screw in)
Capacity of the bracket is 600 pounds but when used with a caster or glide you must go by the lower capacity. For example if the caster being used with the bracket has a 200 pound capacity, then the capacity would be 200 pounds.
Plunger travel of 1"
