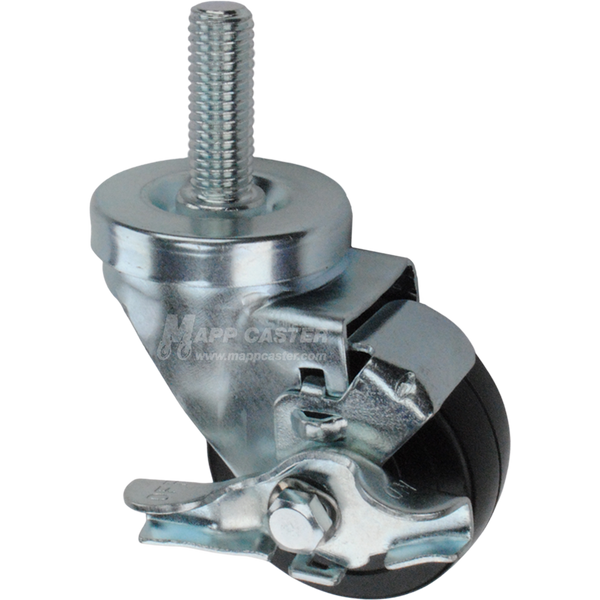

3" x 1-1/4" Hard Rubber Wheel Swivel Brake Caster, 5/8"-11 x 1-3/4" Threaded Stem - 300 lbs Capacity

$12.87

Part # Q523058HRTLB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Hard Rubber Wheel Swivel Brake Caster, 5/8"-11 x 1-3/4" Threaded Stem - Part # Q523058HRTLB

Hard rubber wheels are economically priced and recommended for applications that require higher weight capacities than soft rubber wheels can handle. These wheels work best for applications that don’t require non-marking treads or sitting in place for long periods of time. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

*We would not recommend hard rubber wheels for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 5/8"
Wheel Diameter:3"	Stem Thread Pitch:11
Tread Width: 1-1/4"	Stem Length:1-3/4"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:None	Caster Rig Material Type:Q235 Steel
Wheel Type:Hard Rubber	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore D 55 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -20˚F to 180˚F	Weight: 1.654 Lbs
Link to Replacement Wheel: QHR3H3	Link to Matching Swivel Caster: Q523058HR

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:5/8"

Stem Thread Pitch: 11

Stem Length: 1-3/4"

Tread Shape:Slightly Crowned

Bearing Type: None

Wheel Type: Hard Rubber

Wheel Durometer:Shore D 55 (+/-5)

Overall Height:4"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-20˚F to 180˚F

Weight:1.654 Lbs

Link to Replacement Wheel:QHR3H3

Link to Matching Swivel Caster:Q523058HR
