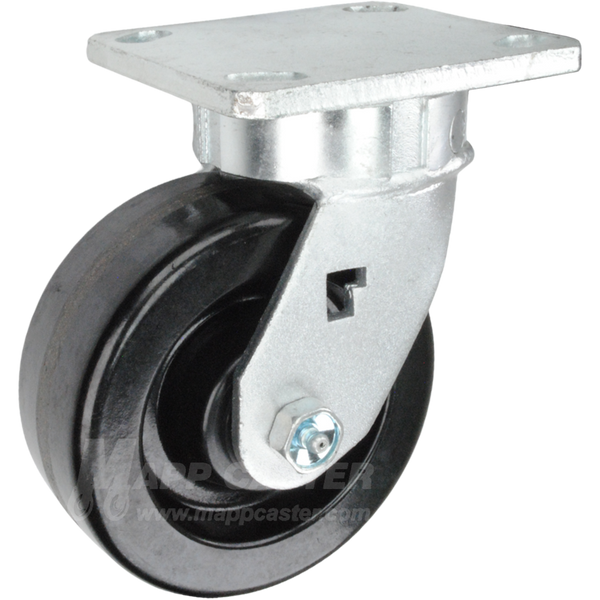

5" x 2" Phenolic Wheel Kingpinless Swivel Caster - 1,000 Lbs Capacity

$68.10

Part # P5105201301

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

5" x 2" Phenolic Wheel Kingpinless Swivel Caster - Part # P5105201301

Phenolic wheels are a great alternative to steel wheels. They provide similar capacity, but better floor protection, slightly quieter rolling, do not rust, & are more economically priced.

Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity & high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads, such as storage bins, dumpsters, & BBQ Pits. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.

We recommend phenolic wheels for many applications, however, if you need more floor protection, a cushioned ride, or a quiet rolling wheel, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 1,000 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:6-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Phenolic	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 90 (+/-5)	Swivel Radius: 4"
Wheel Color: Black	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 250˚F	Weight: 6.054 Lbs
Link to Replacement Wheel: QPHN5MO	Link to Matching Rigid Caster: P5005201302

Capacity: 1,000 lbs.

Wheel Diameter:5"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Phenolic

Wheel Durometer:Shore D 90 (+/-5)

Overall Height:6-1/2"

Swivel Radius:4"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Black

Temp Range:-45˚F to 250˚F

Weight:6.054 Lbs

Link to Replacement Wheel:QPHN5MO

Link to Matching Rigid Caster:P5005201302
