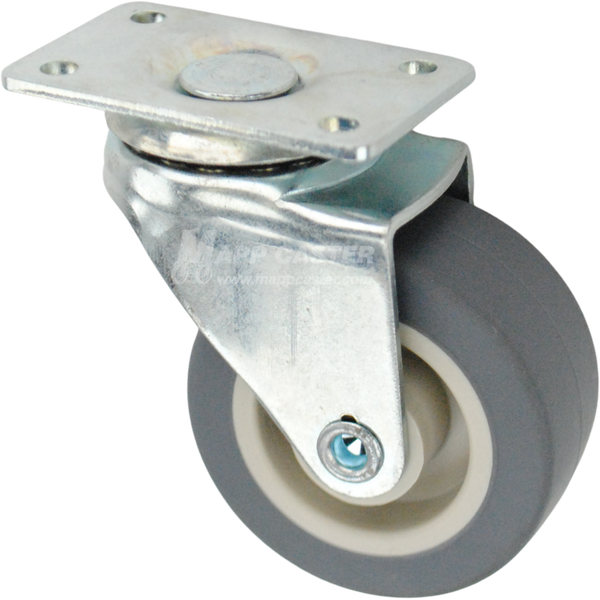

2" x 13/16" Thermoplastic Rubber Wheel Swivel Caster - 70 Lbs Capacity

$5.47

Part # L08TP20AT8001YY

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

2" x 13/16" Thermoplastic Rubber Wheel Swivel Caster - Part # L08TP20AT8001YY

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels.

*We would not recommend this wheel for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Compliant: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 70 Lbs.	Mounting Plate: 1-1/4" x 2-1/16"
Wheel Diameter:2"	Bolt Hole Pattern:13/16" x 1-9/16"
Tread Width: 13/16"	Mounting Bolt Size:1/4" (Riveted)
Tread Shape:Slightly Crowned	Overall Height:2-17/32"
Bearing Type:None	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Thermoplastic Rubber (TPR)	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore A 75 (+/-5)	Swivel Radius: 1-13/16"
Wheel Color: Grey	Swivel Construction: Double Ball Raceway
Temp Range: -20˚F to 180˚F	Weight: 0.314 Lbs
Link to Replacement Wheel: Call to Inquire	Link to Matching Swivel Brake Caster: L08TP20AT8001HY

Capacity: 70 lbs.

Wheel Diameter:2"

Tread Width:13/16"

Mounting Plate:1-1/4" x 2-1/16"

Bolt Hole Pattern: 13/16" x 1-9/16"

Mounting Bolt Size: 1/4" (Riveted)

Tread Shape:Slightly Crowned

Bearing Type: None

Wheel Type: Thermoplastic Rubber (TPR)

Wheel Durometer:Shore A 75 (+/-5)

Overall Height:2-17/32"

Swivel Radius:1-13/16"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Grey

Temp Range:-20˚F to 180˚F

Weight:0.314 Lbs

Link to Replacement Wheel:Call to Inquire

Link to Matching Swivel Brake Caster:L08TP20AT8001HY
