3" x 7/8" Thermoplastic Rubber (TPR) Wheel Swivel Caster - 75 Lbs Capacity

$17.22

Part # G1.03056.441

+

3" x 7/8" Thermoplastic Rubber (TPR) Wheel Swivel Caster - Part # G1.03056.441

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris like metal shavings.

We highly recommend these caster for applications requiring non-marking, floor protective, quiet, or smooth rolling wheels. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

*RoHS Compliant & NSF Listed

Specifications:

Load Capacity (lbs.): 75 Link to Matching Rigid Caster: Contact Us
Wheel Diameter: 3" Caster Rig Material Type: Steel
Tread Width: 7/8" Caster Rig Color/Finish: Zinc Plated
Wheel Type: Thermoplastic Rubber Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Derlin Bearing Swivel Radius: 2-9/16"
Overall Height: 3-7/8" Swivel Construction: Double Ball Bearing Raceway

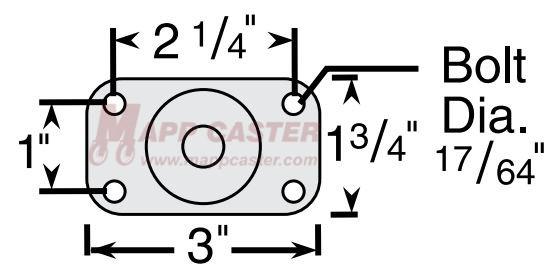

Temp Range: -45˚F to 180˚F Mounting Plate: 1-3/4" x 3"
Wheel Durometer: Shore A 65 (+/-5) Bolt Hole Pattern: 1" x 2-1/4"
Wheel Color: Grey Mounting Bolt Size: 1/4 or Smaller
Link to Replacement Wheel: Contact Us Weight: 1 Lbs

PRODUCT DETAILS

3" x 7/8" Thermoplastic Rubber (TPR) Wheel Swivel Caster - Part # G1.03056.441

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris like metal shavings.

We highly recommend these caster for applications requiring non-marking, floor protective, quiet, or smooth rolling wheels. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

*RoHS Compliant & NSF Listed

Specifications:

Load Capacity (lbs.): 75 Link to Matching Rigid Caster: Contact Us
Wheel Diameter: 3" Caster Rig Material Type: Steel
Tread Width: 7/8" Caster Rig Color/Finish: Zinc Plated
Wheel Type: Thermoplastic Rubber Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Derlin Bearing Swivel Radius: 2-9/16"
Overall Height: 3-7/8" Swivel Construction: Double Ball Bearing Raceway
Temp Range: -45˚F to 180˚F Mounting Plate: 1-3/4" x 3"
Wheel Durometer: Shore A 65 (+/-5) Bolt Hole Pattern: 1" x 2-1/4"
Wheel Color: Grey Mounting Bolt Size: 1/4 or Smaller
Link to Replacement Wheel: Contact Us Weight: 1 Lbs
