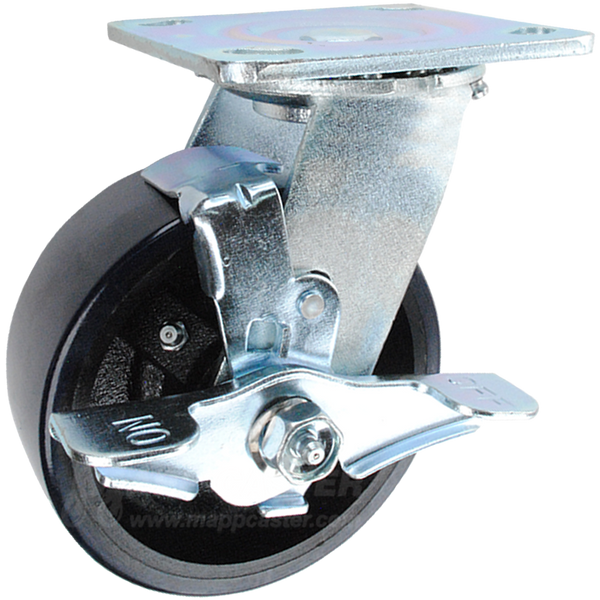

5" x 2" Polyurethane on Iron Wheel Swivel Brake Caster - 1,250 Lbs Capacity

$40.91

Part # 146UIRB520SB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

5" x 2" Polyurethane on Iron Wheel Swivel Brake Caster - Part #: 146UIRB520SB

Polyurethane on iron caster wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on iron wheels are going to be more durable & heavier duty than a polyurethane on polyolefin wheel, but heavier and slightly more difficult to get rolling than a polyurethane on aluminum core wheel. These poly on iron wheels are recommended when you need heavy duty polyurethane wheel but do not want to pay for the premium poly on aluminum castor wheels.

These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Poly on Iron wheels come in variety of colors, tread thicknesses & durometers to meet your specific needs. While the color doesn’t affect performance, the tread's thickness & durometer (hardness) typically do. Typically, the thicker the wheels tread is, the more capacity it can provide.

Specifications:

Load Capacity (lbs.): 1,250	Link to Matching Rigid Brake Caster: 146UIRB520RB
Wheel Diameter: 5"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Poly on Iron	Swivel or Rigid Caster: Swivel with Top Lock Brake

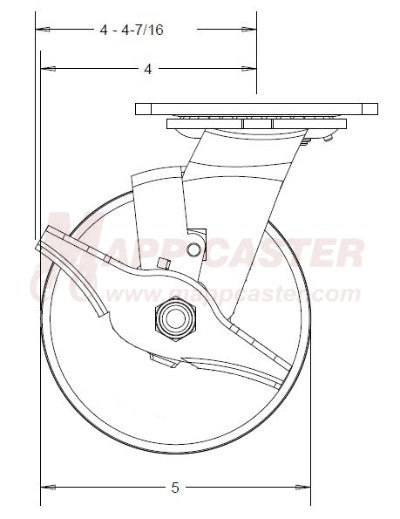

Wheel Bearing Type: See Bearings Options	Swivel Radius: 4"

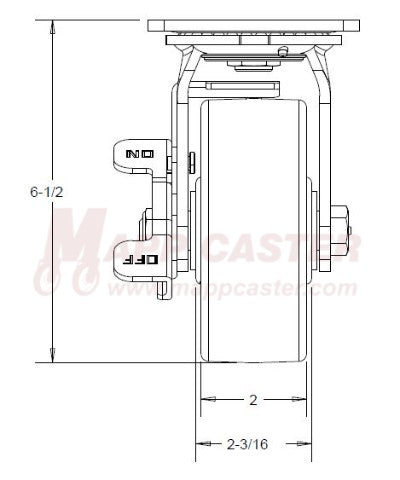

Overall Height: 6-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin

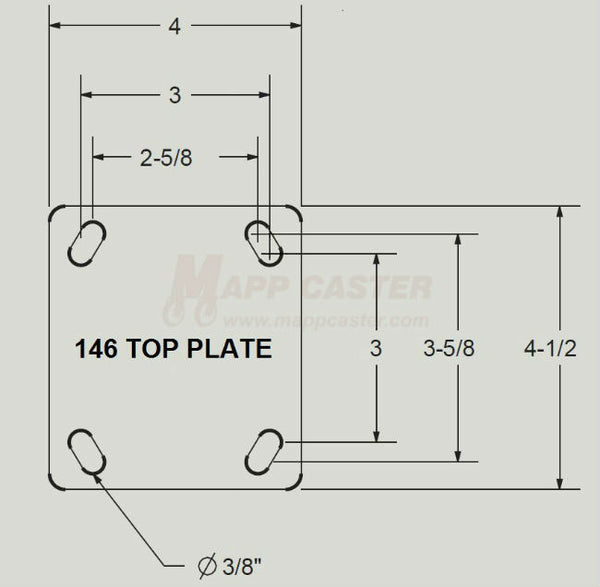

Temp Range: -40°F to 180°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 95 (+/-5)	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Dark Blue	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QPCI5M0	Weight: 7.5 lbs.
