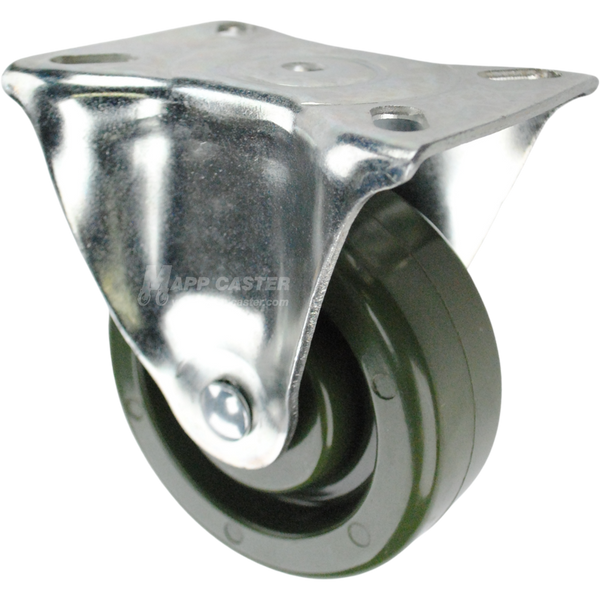

4" x 1-1/2" High Temp Epoxy Ball Bearing Wheel Rigid Caster, 3-1/8" x 4-1/8" Plate - 350 lbs Capacity

$24.95

Part # Q5240R03OVBB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

4" x 1-1/2" High Temp Epoxy Ball Bearing Wheel Rigid Caster, 3-1/8" x 4-1/8" Top Plate - Part # Q5240R03OVBB

High temperature epoxy caster wheels are designed for wet & dry high heat environments making the an excellent choice for ovens, bakeries, powder coating operations & other high heat industrial environments.

Made from glass fiber & reinforced epoxy resin, the hard tread rolls easily while providing better impact resistance & excellent resistance to water, oil, grease, most acids, alkalis, chemicals & cleaning solutions. These wheels are rated for temperatures up to 500°F continuously & 550°F intermittently, with intermittent exposure defined as 30 minutes in heat followed by a 30 minute cooling cycle. They are well suited for applications that require regular wash downs or steam cleaning. Equipped with stainless steel ball bearings for maximum durability & smoother rolling.

* Offers a quieter rolling experience compared to steel wheels. If temperatures exceed 550°F & floor protection is not a concern, consider our steel wheels.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 350 Lbs.	Mounting Plate: 3-1/8" x 4-1/8"
Wheel Diameter:4"	Bolt Hole Pattern:1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Tread Width: 1-1/2"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Flat	Overall Height:5-1/8"
Bearing Type:Ball Bearing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:High Temp Epoxy Resin	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 95 (+/-5)	Temp Range: -40˚F to 500˚F (550˚F Intermittent)
Wheel Color: Green	Weight: 2.194 Lbs
Link to Replacement Wheel: LOV40BB	Link to Matching Swivel Caster: Q524003OVBB
Link to Matching Swivel Brake Caster: Q524003OVBBTLB

Capacity: 350 lbs.

Wheel Diameter:4"

Tread Width:1-1/2"

Mounting Plate:3-1/8" x 4-1/8"

Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Flat

Bearing Type: Ball Bearing

Wheel Type: High Temp Epoxy Resin

Wheel Durometer:Shore D 95 (+/-5)

Overall Height:5-1/8"

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Green

Temp Range:-40˚F to 500˚F (550˚F Intermittent)

Weight:2.194 Lbs

Link to Replacement Wheel:LOV40BB

Link to Matching Swivel Caster:Q524003OVBB

Link to Matching Swivel Brake Caster:Q524003OVBBTLB
