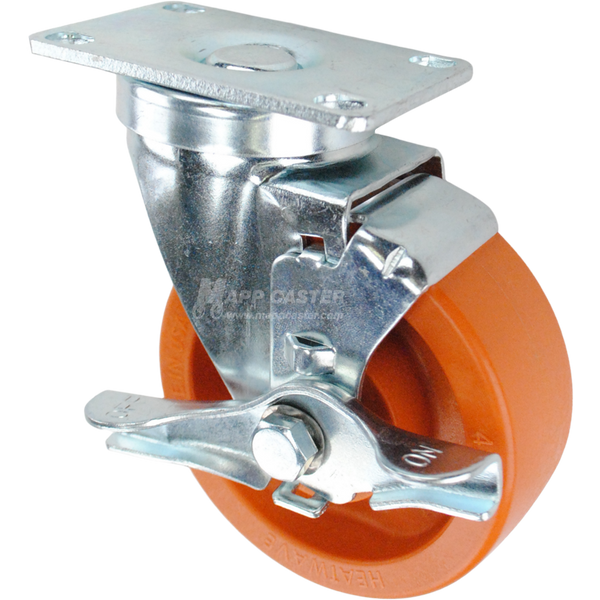

4" x 1-1/2" High Temp Nylon Ball Bearing Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Plate - 300 lbs Capacity

$23.41

Part # Q524001HEAT-BB-ORGTLB

Availablity: Usually ships in 3-5 Business Days

PRODUCT DETAILS

4" x 1-1/2" High Temp Nylon Ball Bearing Wheel Swivel Brake Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q524001HEAT-BB-ORGTLB

High Temperature Heatwave caster wheels are designed for wet & dry high heat environments. Made of a glass filled nylon mixture, the hard tread rolls easily while providing the best impact resistance out of high temp epoxy & high temp phenolic. This wheel has excellent resistance to oil, grease, most acids, chemicals & cleaning solutions. Designed to handle temperatures up to 475°F continuously & 525°F intermittently, with intermittent exposure defined as 30 minutes in heat followed by a 30 minute cooling cycle.

* Offers a quieter rolling experience compared to high temp epoxy, high temp phenolic & steel wheels. If temperatures exceed 525°F consider our high temp epoxy & steel wheels.

* In comparison to high temp epoxy, this wheel lives twice as long and almost 3x more resistant to abrasion.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

*Please note the 03 Top Plate option is very popular for bakery & kitchen equipment

Specifications:

Capacity: 300 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:4"	Bolt Hole Pattern:1-3/4" x 2-7/8" slotted to 1-3/4" x 3"
Tread Width: 1-1/2"	Mounting Bolt Size:5/16" or Smaller
Tread Shape:Slightly Crowned	Overall Height:5-1/8"
Bearing Type:Ball Bearing	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:High Temp Glass Filled Nylon	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Shore D 85 (+/-5)	Swivel Radius: 3-13/32"
Wheel Color: Orange	Swivel Construction: Double Ball Raceway
Temp Range: -20˚F to 475˚F (525˚F Intermittent)	Weight: 2.178 Lbs
Link to Replacement Wheel: R451171C/B-BB-ORG	Link to Matching Rigid Caster: Q5240R01HEAT-BB-ORG
Link to Matching Swivel Caster: Q524001HEAT-BB-ORG

Capacity: 300 lbs.

Wheel Diameter:4"

Tread Width:1-1/2"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" slotted to 1-3/4" x 3"

Mounting Bolt Size: 5/16" or Smaller

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: High Temp Glass Filled Nylon

Wheel Durometer:Shore D 85 (+/-5)

Overall Height:5-1/8"

Swivel Radius:3-13/32"

Swivel Construction: Double Ball Raceway

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Orange

Temp Range:-20˚F to 475˚F (525˚F Intermittent)

Weight:2.178 Lbs

Link to Replacement Wheel:R451171C/B-BB-ORG

Link to Matching Rigid Caster:Q5240R01HEAT-BB-ORG

Link to Matching Swivel Caster:Q524001HEAT-BB-ORG
