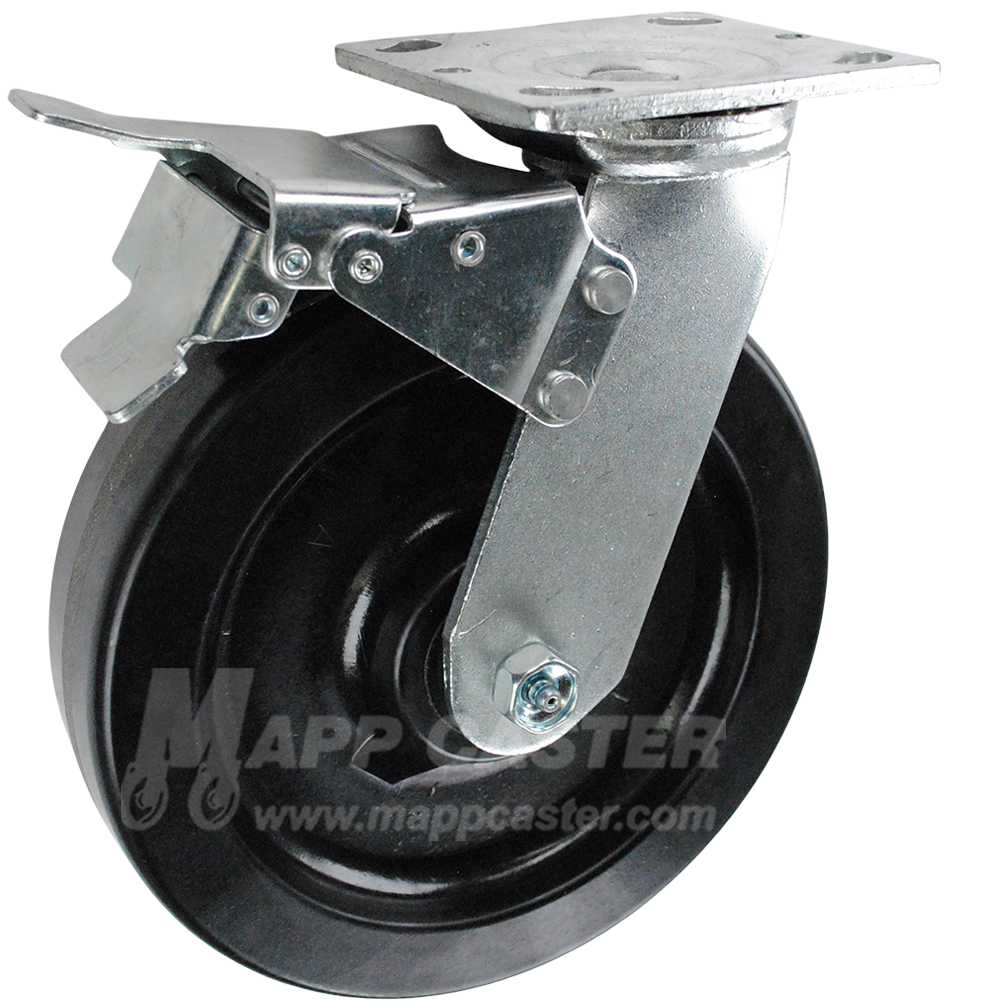

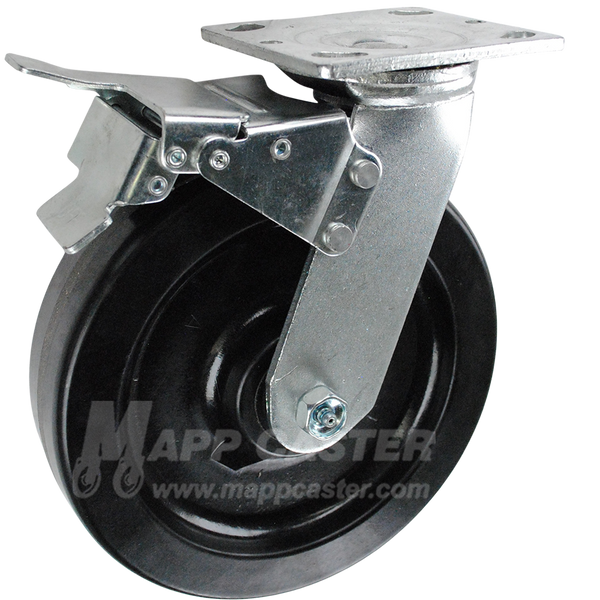

8" x 2" Phenolic Wheel Swivel Caster w/ Total Locking Brake - 1,200 Lbs Capacity

$48.35

Part # 146DURB820SBTL

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

8" x 2" Phenolic Wheel Swivel Caster w/ Total Locking Brake - Part #: 146DURB820SB

Phenolic wheels are a great alternative to steel wheels. They provide similar capacity, but better floor protection, slightly quieter rolling, do not rust, & are more economically priced.

Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity & high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads, such as storage bins, dumpsters, & BBQ Pits. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.

We recommend phenolic wheels for many applications, however, if you need more floor protection, a cushioned ride, or a quiet rolling wheel, we recommend you look at the thermoplastic rubber wheel or polyurethane wheels.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

Specifications:

Load Capacity (lbs.): 1,200	Link to Matching Rigid Brake Caster: 146DURB820RB
Wheel Diameter: 8"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Phenolic	Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: See Bearings Options	Swivel Radius: 6-5/8"
Overall Height: 9-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -50°F to 250°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 90 (+/-5)	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Black	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QPHN8M0	Weight: 8.48 lbs.
