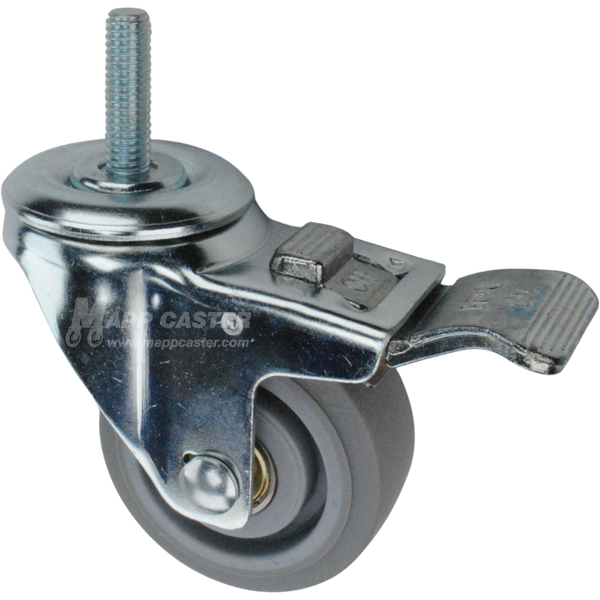

3" x 1-1/4" Thermoplastic Rubber Wheel Swivel Caster w/ Total Lock Brake, 7/16"-14 x 1-1/2" Threaded Stem - 300 lbs Capacity

$26.36

Part # 8GT30KP-MIR-7/16

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Thermoplastic Rubber Wheel Swivel Caster w/ Total Lock Brake, 7/16"-14 x 1-1/2" Threaded Stem - Part # 8GT30KP-MIR-7/16

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

*We would not recommend this wheel for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 7/16"
Wheel Diameter:3"	Stem Thread Pitch:14
Tread Width: 1-1/4"	Stem Length:1-1/2"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Thermoplastic Rubber (TPR)	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 65 (+/-5)	Swivel Radius: 4-3/8"
Wheel Color: Grey	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -20˚F to 180˚F	Weight: 1.5 Lbs
Link to Replacement Wheel: QMIR3G3	Link to Matching Swivel Caster: 8GS30KP-MIR-7/16

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:7/16"

Stem Thread Pitch: 14

Stem Length: 1-1/2"

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: Thermoplastic Rubber (TPR)

Wheel Durometer:Shore A 65 (+/-5)

Overall Height:4"

Swivel Radius:4-3/8"

Swivel Construction: Double Ball Raceway - Kingpin

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Grey

Temp Range:-20˚F to 180˚F

Weight:1.5 Lbs

Link to Replacement Wheel:QMIR3G3

Link to Matching Swivel Caster:8GS30KP-MIR-7/16

PRODUCT DETAILS

3" x 1-1/4" Thermoplastic Rubber Wheel Swivel Caster w/ Total Lock Brake, 7/16"-14 x 1-1/2" Threaded Stem - Part # 8GT30KP-MIR-7/16

*We would not recommend this wheel for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 7/16"
Wheel Diameter:3"	Stem Thread Pitch:14
Tread Width: 1-1/4"	Stem Length:1-1/2"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Thermoplastic Rubber (TPR)	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 65 (+/-5)	Swivel Radius: 4-3/8"
Wheel Color: Grey	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -20˚F to 180˚F	Weight: 1.5 Lbs
Link to Replacement Wheel: QMIR3G3	Link to Matching Swivel Caster: 8GS30KP-MIR-7/16
