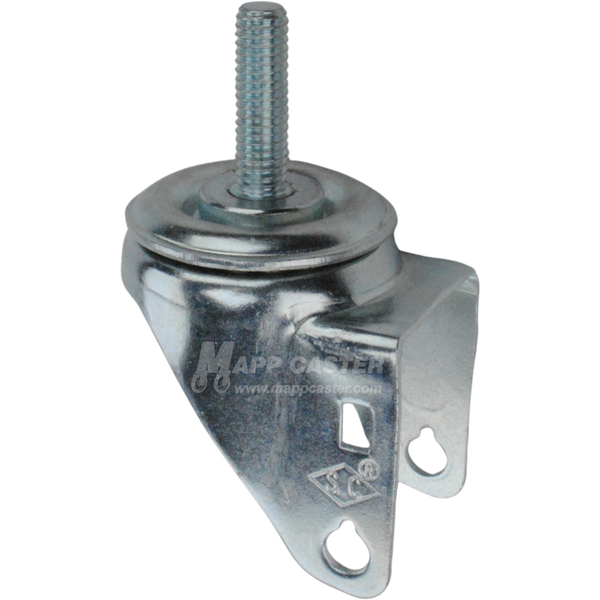

3" x 1-1/4" Swivel Caster Rig with 7/16"-14 x 1-1/2" Threaded Stem - 350 Lbs Capacity

$11.97

Part # 8GS30KP400-7/16

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Swivel Caster Rig with 7/16"-14 x 1-1/2" Threaded Stem - Part # 8GS30KP400-7/16

This rig is designed for 3" diameter wheels that have a 1-1/4" wide tread and can accommodate hub lengths up to 1-5/8". With a 3" diameter wheel, the rig produces an overall height of 4".

Specifications:

Load Capacity (lbs.): 350	Stem Size: 7/16"
Designed for Wheel Diameter of: 3"	Stem Length: 1-1/2"
Designed for Tread Width of: 1-1/4"	Stem Thread: 14
Wheel Hub Length: Up to 1-5/8"	Swivel Construction: Double Ball Raceway - Kingpin
Overall Height (with wheel): 4"	Swivel Radius: 2-5/16"
Axle Size: 3/8"	Caster Rig Material Type: Q235 Steel
Leg Thickness: .225"	Caster Rig Color/Finish: Bright Zinc Plated
Matching Brake Kit: Q5230TLB	Weight (lbs): 0.758

Popular Wheels for this rig: Capacity is the lower of the rig or wheel

QSTL3H3	3" Polyurethane wheel
QHR3H3	3" Hard Rubber wheel
QMIR3G3	3" Thermoplastic Rubber wheel
QPLY3J3	3" Polyurethane wheel
