8" x 2-1/2" Rubber on Iron Keyed Drive Wheel, 1-1/4" ID Bore - 550 Lbs Capacity
$144.26
Part # FMR08025X5D
8" x 2-1/2" Rubber on Iron Keyed Drive Wheel - Part # FMR08025X5D
This wheel is most used on Core Cut 500 concrete saws, however, it can be used for other concrete saws and applications too. Please check your wheel measurements to be sure it will fit your application.

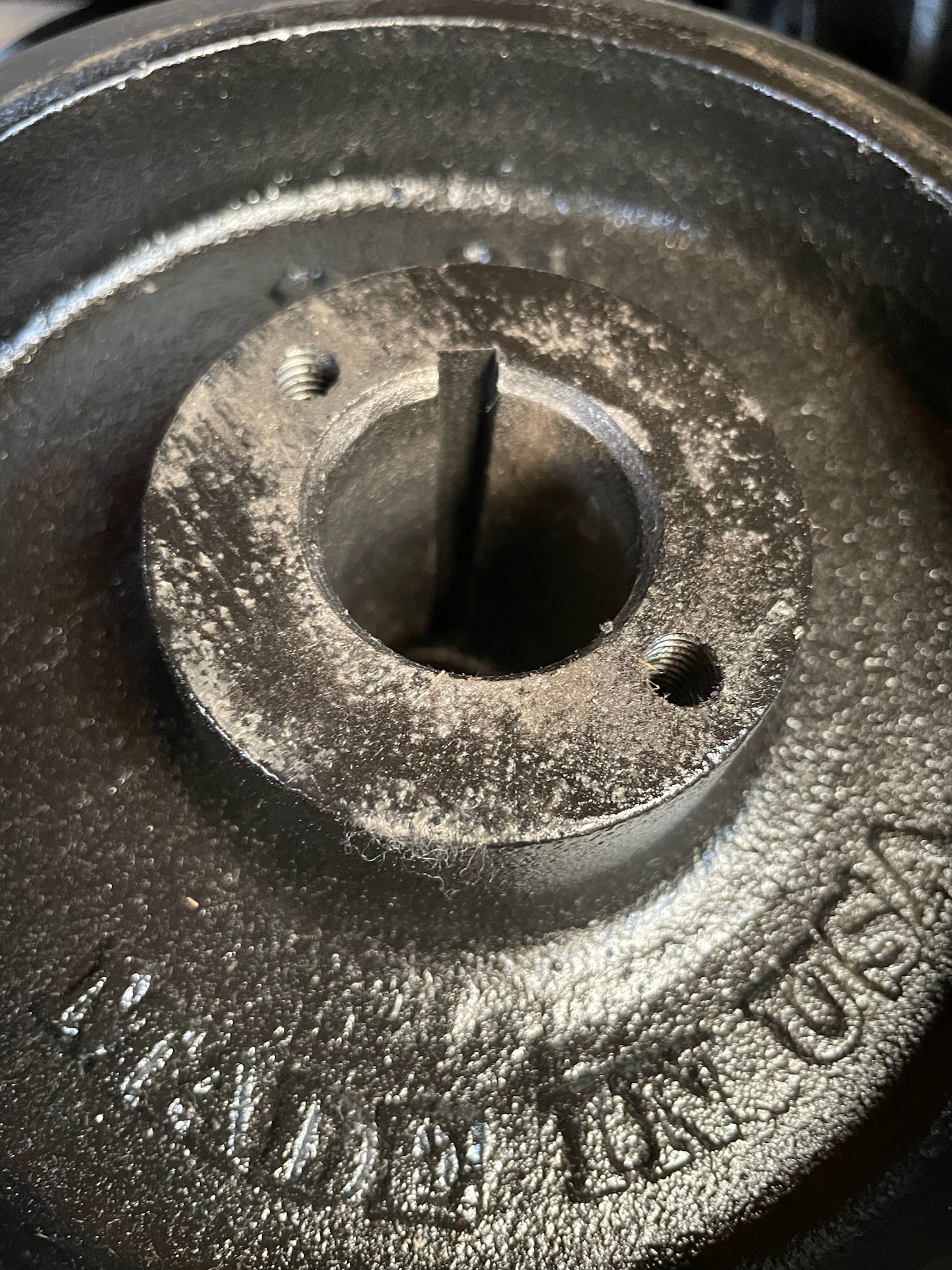

*Please note this wheel has two two 5/16-18 holes on the face of the hub (see images). It DOES NOT have the traditional set screws*
Rubber on iron wheels provide a smooth, quiet, cushioned ride while protecting floors. However, the black rubber may leave marks, similar to tire skid marks. For non-marking performance or higher load capacity, consider our polyurethane wheels as an alternative.
Specifications:
 Capacity: 550 Lbs. |
 Wheel Type:Rubber on Iron |
 Wheel Diameter:8" |
 Hub Length (without Bearings):2-3/4" |
 Tread Width: 2-1/2" |
 Hub Length (with Bearings):N/A |
 Keyed Width: 1/4" |
 Keyed Depth:1/8" |
 Bearing Type:None |
 Wheel Durometer: Shore A 70 (±5) |
 Plain Bore ID:1-1/4" |
 Wheel Tread Shape:Slightly Crowned |
 Accepted Axle/Bearing ID:1-1/4" |
 Wheel Color:Black |
 Temp Range: -70˚F to 160˚F |
 Weight: 9.488 lbs |
|
Capacity:550 lbs. |
|
Wheel Type:Rubber on Iron |
|
Wheel Diameter:8" |
|
Tread Width:2-1/2" |
|
Hub Length (without Bearings):
2-3/4" |
|
Hub Length (with Bearings): N/A
|
|
Bearing Type:None |
|
Plain Bore ID:1-1/4" |
|
Keyed Width:1/4" |
|
Keyed Depth:1/8" |
|
Accepted Axle/Bearing ID:1-1/4" |
|
Wheel Durometer:Shore A 70 (±5) |
|
Wheel Tread Shape:Slightly Crowned |
|
Temp Range: -70˚F to 160˚F |
|
Wheel Color:Black |
|
Weight: 9.488 lbs |
PRODUCT DETAILS
8" x 2-1/2" Rubber on Iron Keyed Drive Wheel - Part # FMR08025X5D
This wheel is most used on Core Cut 500 concrete saws, however, it can be used for other concrete saws and applications too. Please check your wheel measurements to be sure it will fit your application.
*Please note this wheel has two two 5/16-18 holes on the face of the hub (see images). It DOES NOT have the traditional set screws*
Rubber on iron wheels provide a smooth, quiet, cushioned ride while protecting floors. However, the black rubber may leave marks, similar to tire skid marks. For non-marking performance or higher load capacity, consider our polyurethane wheels as an alternative.
Specifications:
|
Capacity: 550 Lbs. |
Wheel Type:Rubber on Iron |
|
Wheel Diameter:8" |
Hub Length (without Bearings):2-3/4" |
|
Tread Width: 2-1/2" |
Hub Length (with Bearings):N/A |
|
Keyed Width: 1/4" |
Keyed Depth:1/8" |
|
Bearing Type:None |
Wheel Durometer: Shore A 70 (±5) |
|
Plain Bore ID:1-1/4" |
Wheel Tread Shape:Slightly Crowned |
|
Accepted Axle/Bearing ID:1-1/4" |
Wheel Color:Black |
|
Temp Range: -70˚F to 160˚F |
Weight: 9.488 lbs |
|
Capacity:550 lbs. |
|
Wheel Type:Rubber on Iron |
|
Wheel Diameter:8" |
|
Tread Width:2-1/2" |
|
Hub Length (without Bearings):
2-3/4" |
|
Hub Length (with Bearings): N/A
|
|
Bearing Type:None |
|
Plain Bore ID:1-1/4" |
|
Keyed Width:1/4" |
|
Keyed Depth:1/8" |
|
Accepted Axle/Bearing ID:1-1/4" |
|
Wheel Durometer:Shore A 70 (±5) |
|
Wheel Tread Shape:Slightly Crowned |
|
Temp Range: -70˚F to 160˚F |
|
Wheel Color:Black |
|
Weight: 9.488 lbs |
