Medium Duty Plate Casters

Steel Plate Casters

Steel Plate Casters available in Cast Iron (Semi-Steel), Ductile & Forged Steel - High temperatures, Capacities & impact resistance
High Temp
High Capacity
Impact Resistance

Steel casters are built for some of the most demanding applications where extreme capacities & or high temperatures are needed. Available in cast iron, ductile iron & forged steel wheel options, these casters are designed to withstand impacts & shock loads. Excellent choice for warehouses, ovens, powder coating & other industrial applications. Unlike polyurethane, steel wheels are not affected by prolonged high temperatures or direct sunlight. Unlike phenolic resin or high temp nylon, steel can withstand temperatures up to 1,300°F. While steel wheels prioritize durability & heat resistance over floor protection, they deliver low rolling resistance under heavy loads on smooth concrete surfaces. Specifically recommended for rolling across steel grating surfaces as all other wheels will get torn up. Customize your steel casters with high temperature bearings, brakes, swivel locks, seals & mounting options for a complete heavy duty solution.

Cast Iron
The Everyday Workhorse
Ductile Steel
Ergonomic
Forged Steel
No Compromises

All Steel Wheels

Steel casters are available in a variety of materials including cast iron, semi-steel, ductile steel & forged steel, with each option offering increasing levels of strength, durability & impact resistance. Designed for dependable long-term performance in demanding industrial environments, steel wheels are built to handle heavy loads, shock impacts, abrasive conditions & extreme temperatures.

Standard

1,800 lbs Capacity

Heavy Duty Cast iron (semi-steel), high capacity, heat resistance, impact resistance

Cast Iron

✔ High Capacities

✔ Temperatures up to 600°F

✔ Flat Tread

✔ Good Impact & Shock Resistance

✔ Wide Industrial Use

✔ Economically Priced

✔ RoHS Compliant

Better

2,000 lbs Capacity

Swivel & Rigid Ductile Steel Plate Casters - High Temperatures, Capacities, impact resistance

Ductile Steel

✔ Higher Capacity by Size

✔ Temperatures up to 800°F

✔ Moderate Crown Tread (More ergonomic)

✔ Better Impact & Shock Resistance

✔ Wide Industrial Use

✔ RoHS Compliant

Best

2,000 lbs Capacity

Forged Steel Plate Casters, Available in Swivel & Rigid, High Capacities, High Temperature Resistant, Impact Resistant

Forged Steel

✔ Highest Capacity by Size

✔ Temperatures up to 1,300°F

✔ Flat Tread

✔ Best Impact & Shock Resistance

✔ Wide Industrial Use

✔ RoHS Compliant

Click here to Read more about Each Type of Steel Caster

Our cast iron wheel is best described as semi-steel as it blended with additional steel over standard cast iron.

  • This wheel is rated brinell 145 which is hard & provides the best rolling experience on smooth concrete floors.
  • Flat tread doesn't assist with rolling, swiveling & pivoting
  • Large selection of bearings & bushings to tailor your wheel to your needs & budget.
  • Max temperature of 600°F. Temperature ratings vary based on bearing selection.
  • Good Impact & shock resistance
  • May cause floor damage overtime, especially if its rolling back forth in the exact same spot
  • RoHS compliant - Meets strict standards limiting hazardous substances, safe for use & environmentally friendly

Our ductile steel wheel utilizes a specialized steel alloy for increased strength. Tensile strength of 45,000 PSI.

  • This wheel is rated rockwell 75 which is very hard & provides the best rolling experience on smooth concrete floors.
  • Moderate crowned tread, assist with rolling, swiveling & pivoting
  • Large selection of bearings & bushings to tailor your wheel to your needs & budget.
  • Max temperature of 800°F. Temperature ratings vary based on bearing selection.
  • Better Impact & shock resistance
  • May cause floor damage overtime, especially if its rolling back forth in the exact same spot
  • RoHS compliant - Meets strict standards limiting hazardous substances, safe for use & environmentally friendly

Our forged steel wheel is made from high quaility ASTM1045 high carbon steel. Tensile strength of 60,000 PSI

  • This wheel is rated rockwell 93 B which is very hard & provides the best rolling experience on smooth concrete floors.
  • Flat tread doesn't assist with rolling, swiveling & pivoting
  • Large selection of bearings & bushings to tailor your wheel to your needs & budget.
  • Max temperature of 1,300°F. Temperature ratings vary based on bearing selection.
  • Best Impact & shock resistance
  • May cause floor damage overtime, especially if its rolling back forth in the exact same spot
  • RoHS compliant - Meets strict standards limiting hazardous substances, safe for use & environmentally friendly

Shop All 4" x 4-1/2" Mounting Plates - Up to 2,000 lbs Capacity

The 4" x 4-1/2" is one of the most popular plate sizes for medium duty plate casters & casters that carry no more than 2,000 lbs capacity. Because of how popular this size is, we currently carry 3 types of caster rigs to accomdate. The P51 kingpinless series offer incredible amounts of durability, we actually recommend these for towing applications which tends to be a rougher

Speciality

1,250 lbs Capacity

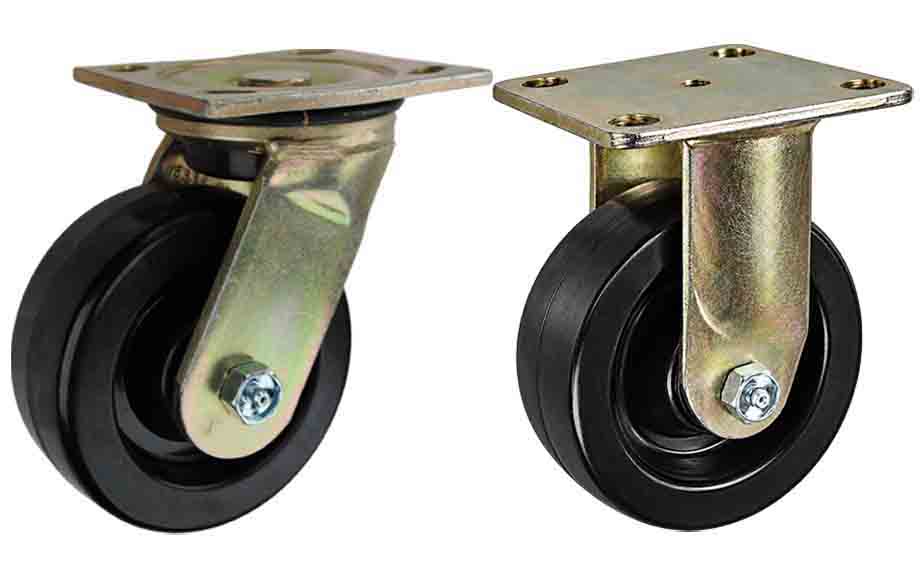

AS/AR Series

✔ Cold Rolled Steel

✔ Kingpin Design

✔ Rated to 180˚F only

✔ Non-Greaseable Swivel Section

✔ Built-in Sealed Swivel Section

✔ Available in Sizes 5", 6", 8"

Speciality

1,250 lbs Capacity

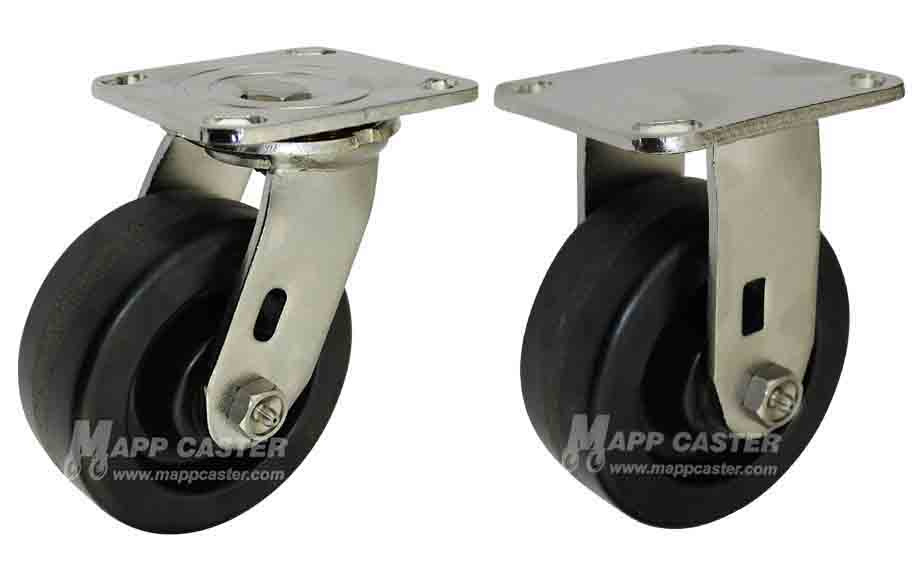

Stainless Steel Series

✔ 304 Stainless Steel (Rust Resistant)

✔ Kingpin Design

✔ High Temp Rated (Wheel Dependent)

✔ Greaseable Swivel Section

✔ Sealed Swivel Section (Add-On)

✔ Available in Sizes 3-1/4", 4", 5", 6", 8"

Standard

1,250 lbs Capacity

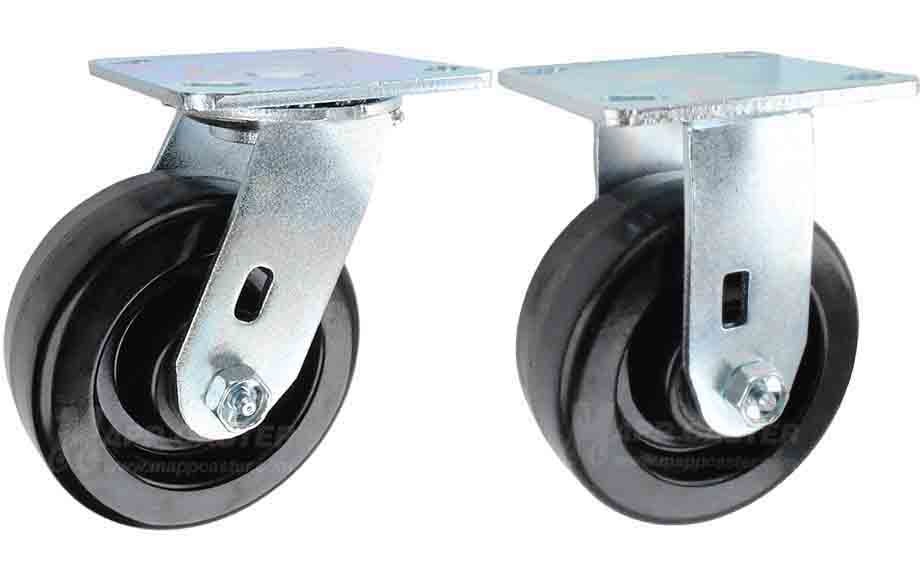

146 Series

✔ Cold Rolled Steel

✔ Kingpin Design

✔ High Temp Rated (Wheel Dependent)

✔ Greaseable Swivel Section

✔ Sealed Swivel Section (Add-On)

✔ Available in Sizes 3-1/4", 4", 5", 6", 8"

Best

2,000 lbs Capacity

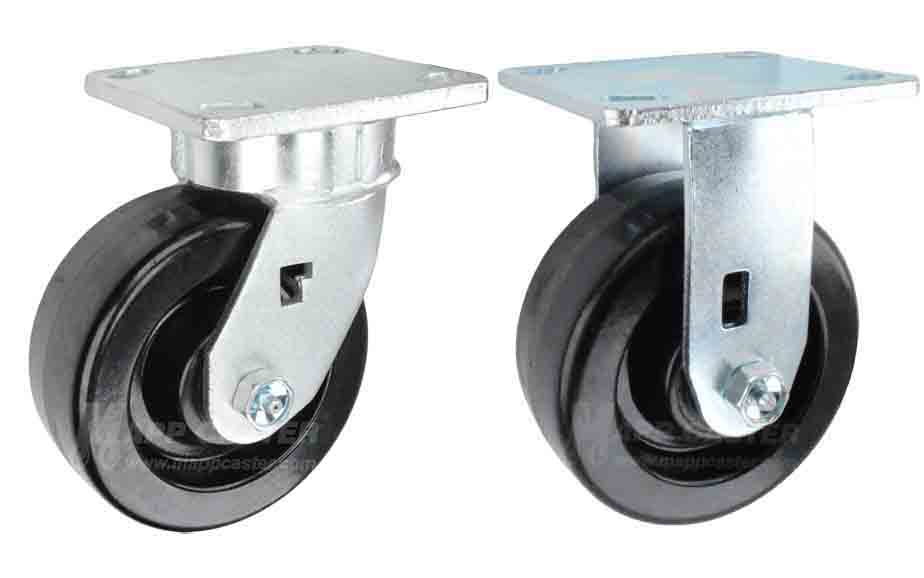

P51 Series

✔ AISI 1045 Steel

✔ Kingpinless Design (Longer Lifespan)

✔ High Temp Rated (Wheel Dependent)

✔ Greaseable Swivel Section

✔ Enclosed ball bearings

✔ Available in Sizes 4", 5", 6", 8"

Click here to Read more about Each Type of Rig

  • Made from Cold Rolled Steel
  • The kingpin design swivel section can gradually stretch between the forks & top plate over long-term use. Swivel bearings may loosen or fall out, requiring the caster rig to be replaced.
  • Rated for up to 180°F max.
  • Non-greaseable swivel section
  • Comes standard with built in swivel section seals to prevent dirt, dust & debris, This limits all casters in this series to 180°F max.
  • Swivel section ball bearings are not exposed to dirt, dust & debris.
  • Available in wheel sizes 5", 6" 8"
  • Only accommodates 2" wide caster wheels
  • Made from rust resistant 304 stainless steel
  • The kingpin design swivel section can gradually stretch between the forks & top plate over long-term use. Swivel bearings may loosen or fall out, requiring the caster rig to be replaced.
  • Rated for high Temperatures (Wheel Dependent)
  • Greasable Swivel Section
  • Availble with an ADD-On rubber seal & high temp seal that prevents dirt, dust & debris entering the swivel section. High temp seal is rated to 380°F max.
  • Swivel Section ball bearings are exposed in its standard configuration
  • Available in wheel sizes 4", 5", 6" 8"
  • Only accommodates 2" wide caster wheels
  • Made from cold rolled steel
  • The kingpin design swivel section can gradually stretch between the forks & top plate over long-term use. Swivel bearings may loosen or fall out, requiring the caster rig to be replaced.
  • Rated for high Temperatures (Wheel Dependent)
  • Greasable Swivel Section
  • Availble with an ADD-On rubber seal & high temp seal that prevents dirt, dust & debris entering the swivel section. High temp seal is rated to 380°F max.
  • Swivel Section ball bearings are exposed in its standard configuration
  • Available in wheel sizes 3-1/4", 4", 5", 6" 8"
  • Only accommodates 2" wide caster wheels
  • Made from High Quality AISI 1045 Steel
  • The kingpinless swivel design outlasts traditional kingpin casters because it eliminates the primary point of failure. Over time, the kingpin in conventional casters can stretch under continuous use, eventually causing the swivel section to loosen & fail.
  • Rated for high Temperatures (Wheel Dependent)
  • Greasable Swivel Section
  • Swivel section seal is NOT available
  • Swivel section enclosed ball bearings are not visable or easily exposed to dirt debris or liquids
  • Available in wheel sizes 4", 5", 6" 8"
  • Only accommodates 2" wide caster wheels
