6" x 2" Patriot Polyurethane on Polyolefin Core Wheel Swivel Brake Caster - 1,000 Lbs Capacity

$29.21 $44.26

Part # 146PRX620SB

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

6" x 2" Patriot Polyurethane on Polyolefin Core Wheel Swivel Brake Caster - Part # 146PRX620SB

Designed as a budget friendly polyurethane option, our blue & white polyurethane on polyolefin wheels offer good load capacities while remaining floor safe for use on tile, hardwood & other finished surfaces. Compared to rubber wheels, they provide greater capacities & lower rolling resistance, though the firmer Shore A 95 tread is not as soft or cushioning as rubber. Additionally its crowned (round) tread improves maneuverability for easier turning & pivoting. This wheel is also comes standard with a precision ball bearing to make a great preforming wheel.

The tread is mechanically bonded to the core, making it better suited for dry environments. Wet conditions, prolonged UV exposure & extreme temperatures can accelerate wear & potentially lead to de-treading over time.

Polyurethane wheels come in variety of colors, tread shapes & durometers to meet your application needs. While the color doesn’t affect performance, the tread shape & durometer will.

Specifications:

Load Capacity (lbs.): 1,000	Link to Matching Rigid Brake Caster: 146PRX620RB
Wheel Diameter: 6"	Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2"	Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Polyurethane on Polyolefin	Swivel or Rigid Caster: Swivel with Top Lock Brake
Wheel Bearing Type: Precision Ball	Swivel Radius: 4-9/16"
Overall Height: 7-1/2"	Swivel Construction: Double Ball Raceway - 5/8" Kingpin

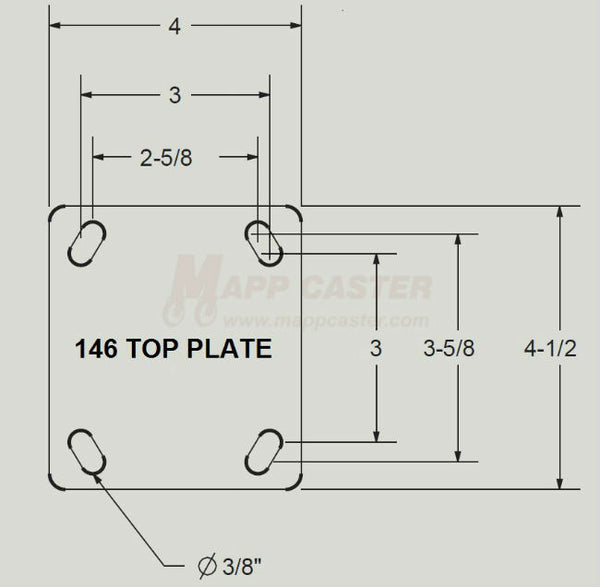

Temp Range: -20°F to 180°F	Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore D 60 (+/-5	Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black	Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QPRX6M5	Weight: 4.98 lbs.
