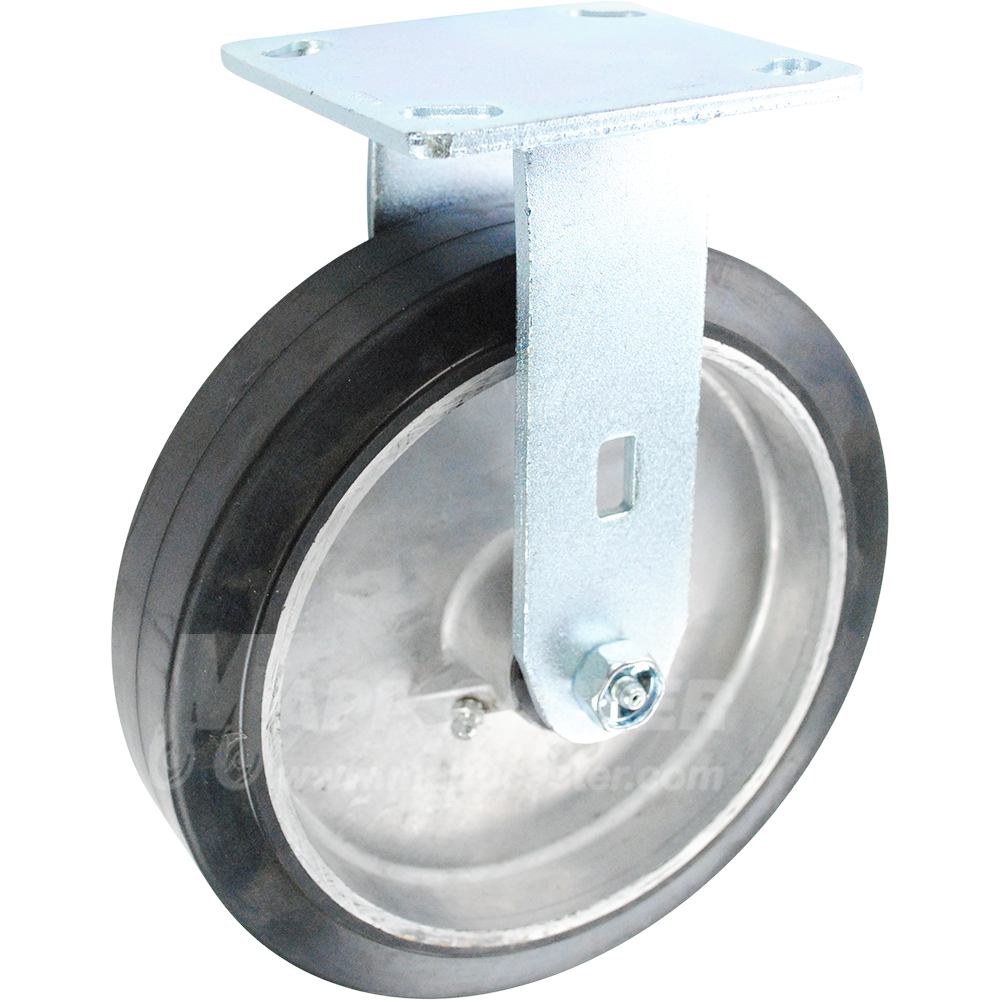

8" x 2" Rubber on Aluminum Wheel Rigid Caster - 500 Lbs Capacity

Part # 146RARB820R

Availablity: Usually ships in 24-48 hours
+


8" x 2" Rubber on Aluminum Wheel Rigid Caster - Part #: 146RARB820R

Rubber on aluminum wheels offer a smooth, quiet, & cushioned ride that will protect floors. Considered an upgrade from rubber on nylon or rubber on cast iron, these wheels are lightweight & resistant to corrosion & rust. This wheel also offers a non-marking tread.

This wheel has an attractive finish that make it popular for customers seeking a decorative look. If a higher capacity is needed, we recommend checking out our polyurethane or thermoplastic rubber wheel casters. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Specifications:

Load Capacity (lbs.): 500 Link to Matching Swivel Caster: 146RARB820S
Wheel Diameter: 8" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Rubber on Aluminum Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 6"
Overall Height: 9-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -40˚ to 160˚F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Shore A 80 (+/-5) Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel Color: Black Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: 2WS7708 Weight: 4.50 Lbs
