$35.36
Part # Q523058STLRBTLB
Availablity: Usually ships in 24-48 hoursSintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.
For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

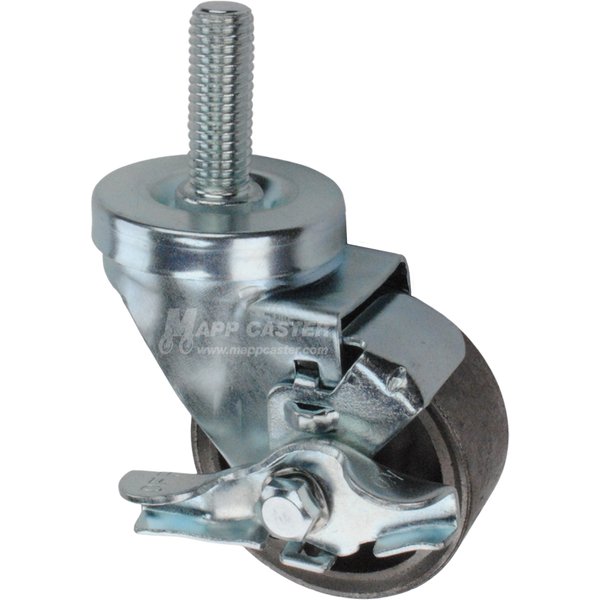

This caster features an all-steel top lock brake that performs well in a wide range of applications, including those involving heat. The side-mounted brake pedal provides a more compact design than face contact & total lock brakes. The compact design minimizes the swivel radius, allowing the caster to spin freely 360 degrees with minimal obstruction. Casters with front-mounted brake pedals require more clearance to achieve full rotation.
* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Capacity: 300 lbs. |
|
|
Tread Width:1-1/4" |
|
|
|
Stem Thread Pitch: 11
|
|
Stem Length: 1-3/4"
|
Tread Shape:Flat |
Bearing Type: Roller Bearing |
Wheel Type: Sintered Steel |
Wheel Durometer:Brinell 145 |
|
|
|
|
|
|
|
|
|
|
Wheel Color:Silver |
Temp Range:-40˚F to 500˚F |
Weight:2.428 Lbs |
|
|
|
|
Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.
For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.
This caster features an all-steel top lock brake that performs well in a wide range of applications, including those involving heat. The side-mounted brake pedal provides a more compact design than face contact & total lock brakes. The compact design minimizes the swivel radius, allowing the caster to spin freely 360 degrees with minimal obstruction. Casters with front-mounted brake pedals require more clearance to achieve full rotation.
* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Capacity: 300 lbs. |
|
|
Tread Width:1-1/4" |
|
|
|
Stem Thread Pitch: 11
|
|
Stem Length: 1-3/4"
|
Tread Shape:Flat |
Bearing Type: Roller Bearing |
Wheel Type: Sintered Steel |
Wheel Durometer:Brinell 145 |
|
|
|
|
|
|
|
|
|
|
Wheel Color:Silver |
Temp Range:-40˚F to 500˚F |
Weight:2.428 Lbs |
|
|
|
|
