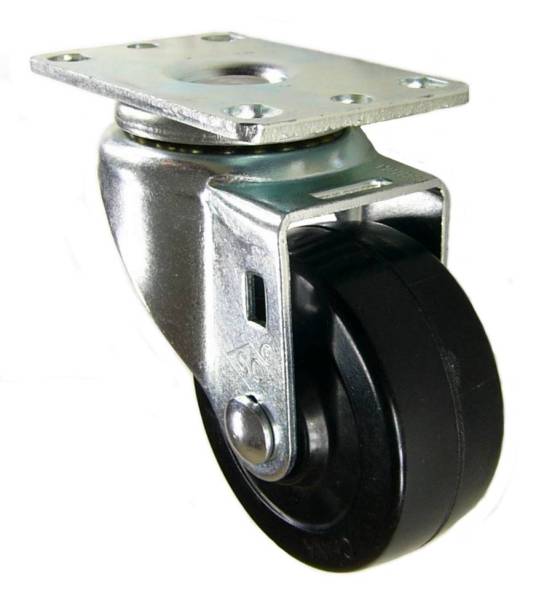

3" x 1-1/4" Soft Rubber Wheel Swivel Caster, 2-3/8" x 3-5/8" Top Plate - 300 lbs Capacity

$9.72

Part # Q523001SR

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Soft Rubber Wheel Swivel Caster, 2-3/8" x 3-5/8" Top Plate - Part # Q523001SR

Soft rubber wheels are economically priced and are recommended for applications that don’t require high capacities or non-marking treads. The rubber treads provide good floor protection, semi-cushioned ride, and quiet rolling. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

* We would not recommend soft rubber wheels for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Compliant: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Mounting Plate: 2-3/8" x 3-5/8"
Wheel Diameter:3"	Bolt Hole Pattern:1-3/4" x 2-7/8" to 3"
Tread Width: 1-1/4"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned	Overall Height:4-1/8"
Bearing Type:None	Caster Rig Material Type:Q235 Steel
Wheel Type:Soft Rubber	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 80 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -40˚F to 160˚F	Weight: 1.592 Lbs
Link to Replacement Wheel: QSR3H3	Link to Matching Rigid Caster: Q5230R01SR
Link to Matching Swivel Brake Caster: Q523001SRTLB	Link to Matching Swivel Caster w/ Face Contact Brake: Q523001SRFCB
Link to Matching Swivel Caster w/ Total Lock Brake: Q523001SRSWB

Capacity: 300 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Mounting Plate:2-3/8" x 3-5/8"

Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Slightly Crowned

Bearing Type: None

Wheel Type: Soft Rubber

Wheel Durometer:Shore A 80 (+/-5)

Overall Height:4-1/8"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-40˚F to 160˚F

Weight:1.592 Lbs

Link to Replacement Wheel:QSR3H3

Link to Matching Rigid Caster:Q5230R01SR

Link to Matching Swivel Brake Caster:Q523001SRTLB

Link to Matching Swivel Caster w/ Face Contact Brake:Q523001SRFCB

Link to Matching Swivel Caster w/ Total Lock Brake:Q523001SRSWB
