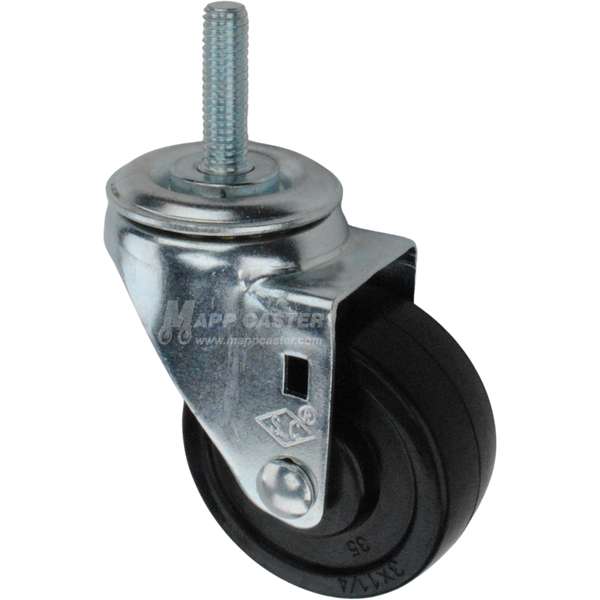

3" x 1-1/4" Soft Rubber Wheel Swivel Caster, 7/16"-14 x 1-1/2" Threaded Stem - 175 lbs Capacity

$14.92

Part # 8GS30KP-SR-7/16

Availablity: Usually ships in 24-48 hours

PRODUCT DETAILS

3" x 1-1/4" Soft Rubber Wheel Swivel Caster, 7/16"-14 x 1-1/2" Threaded Stem - Part # 8GS30KP-SR-7/16

Soft rubber wheels are economically priced and are recommended for applications that don’t require high capacities or non-marking treads. The rubber treads provide good floor protection, semi-cushioned ride, and quiet rolling. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

*We would not recommend soft rubber wheels for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Certified: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 175 Lbs.	Stem Size: 7/16"
Wheel Diameter:3"	Stem Thread Pitch:14
Tread Width: 1-1/4"	Stem Length:1-1/2"
Tread Shape:Slightly Crowned	Overall Height:4"
Bearing Type:None	Caster Rig Material Type:Q235 Steel
Wheel Type:Soft Rubber	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 80 (+/-5)	Swivel Radius: 2-15/16"
Wheel Color: Black	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -20˚F to 180˚F	Weight: 1.346 Lbs
Link to Replacement Wheel: QSR3H3	Link to Matching Swivel Brake Caster: 8GS30KP-SRTLB-7/16
Link to Matching Swivel Caster w/ Total Locking Brake: 8GT30KP-SR-7/16

Capacity: 175 lbs.

Wheel Diameter:3"

Tread Width:1-1/4"

Stem Size:7/16"

Stem Thread Pitch: 14

Stem Length: 1-1/2"

Tread Shape:Slightly Crowned

Bearing Type: None

Wheel Type: Soft Rubber

Wheel Durometer:Shore A 80 (+/-5)

Overall Height:4"

Swivel Radius:2-15/16"

Swivel Construction: Double Ball Raceway - Kingpin

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Black

Temp Range:-20˚F to 180˚F

Weight:1.346 Lbs

Link to Replacement Wheel:QSR3H3

Link to Matching Swivel Brake Caster:8GS30KP-SRTLB-7/16

Link to Matching Swivel Caster w/ Total Locking Brake:8GT30KP-SR-7/16
