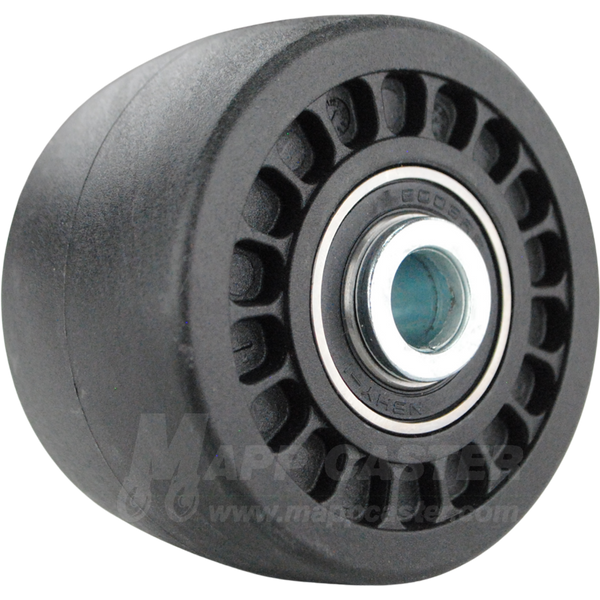

3" x 1-13/16" Nylon Wheel w/ Precision Ball Bearing - 1,000 Lbs Capacity
$28.97
Part # 8006300
3" x 1-13/16" Nylon Wheel w/ Precision Ball Bearing - Part # 8006300
Designed for applications with limited height clearance, this low profile heavy duty caster is often referred to as a business machine caster. It is a popular solution for vending machines, arcade machines, server racks, data center equipment, commercial kitchen equipment & so much more applications that requiring high load capacities with a compact overall height.
The nylon wheel offers resistance to water, grease, oil, solvents, chemicals & cleaning solutions. Its moderately crowned tread improves swiveling, pivoting & maneuverability. The wheel itself is quite hard being rated Shore D 85, its more ideal for rolling on smoother floors. This wheel resists flat spotting when supporting high capacities for long periods of time. Its non-marking tread is best for smooth concrete floors, but is not recommended for hardwood, tile or other finished surfaces.
Specifications:
 Capacity: 1,000 Lbs. |
 Wheel Type: Nylon |
 Wheel Diameter:3" |
 Hub Length (without Bearings):1-25/32" |
 Tread Width: 1-13/16" |
 Hub Length (with Bearings):2-1/16" |
 Bearing Type:Ball Bearing |
 Wheel Durometer: Shore D 85 (±5) |
 Plain Bore ID:N/A |
 Wheel Tread Shape: Slightly Crowned |
 Accepted Axle/Bearing ID:12mm |
 Wheel Color:Black |
 Temp Range: -40˚F to 180˚F |
 Weight: 0.724 lbs |
|
Capacity:1,000 lbs. |
|
Wheel Type:Nylon |
|
Wheel Diameter:3" |
|
Tread Width:1-13/16" |
|
Hub Length (without Bearings):
1-25/32" |
|
Hub Length (with Bearings): 2-1/16"
|
|
Bearing Type:Ball Bearing |
|
Plain Bore ID:N/A |
|
Accepted Axle/Bearing ID:12mm |
|
Wheel Durometer:Shore A 80 (±5) |
|
Wheel Tread Shape:Slightly Crowned |
|
Temp Range: -40˚F to 180˚F |
|
Wheel Color:Black |
|
Weight: 0.724 lbs |
Resources:
```
PRODUCT DETAILS
3" x 1-13/16" Nylon Wheel w/ Precision Ball Bearing - Part # 8006300
Designed for applications with limited height clearance, this low profile heavy duty caster is often referred to as a business machine caster. It is a popular solution for vending machines, arcade machines, server racks, data center equipment, commercial kitchen equipment & so much more applications that requiring high load capacities with a compact overall height.
The nylon wheel offers resistance to water, grease, oil, solvents, chemicals & cleaning solutions. Its moderately crowned tread improves swiveling, pivoting & maneuverability. The wheel itself is quite hard being rated Shore D 85, its more ideal for rolling on smoother floors. This wheel resists flat spotting when supporting high capacities for long periods of time. Its non-marking tread is best for smooth concrete floors, but is not recommended for hardwood, tile or other finished surfaces.
Specifications:
|
Capacity: 1,000 Lbs. |
Wheel Type: Nylon |
|
Wheel Diameter:3" |
Hub Length (without Bearings):1-25/32" |
|
Tread Width: 1-13/16" |
Hub Length (with Bearings):2-1/16" |
|
Bearing Type:Ball Bearing |
Wheel Durometer: Shore D 85 (±5) |
|
Plain Bore ID:N/A |
Wheel Tread Shape: Slightly Crowned |
|
Accepted Axle/Bearing ID:12mm |
Wheel Color:Black |
|
Temp Range: -40˚F to 180˚F |
Weight: 0.724 lbs |
|
Capacity:1,000 lbs. |
|
Wheel Type:Nylon |
|
Wheel Diameter:3" |
|
Tread Width:1-13/16" |
|
Hub Length (without Bearings):
1-25/32" |
|
Hub Length (with Bearings): 2-1/16"
|
|
Bearing Type:Ball Bearing |
|
Plain Bore ID:N/A |
|
Accepted Axle/Bearing ID:12mm |
|
Wheel Durometer:Shore A 80 (±5) |
|
Wheel Tread Shape:Slightly Crowned |
|
Temp Range: -40˚F to 180˚F |
|
Wheel Color:Black |
|
Weight: 0.724 lbs |
Resources:
```
